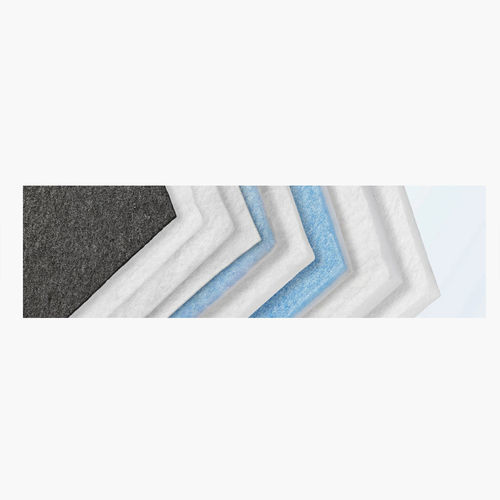

Synthetic fiber filter mat 6305

fine filtrationcoarse pre-filtration

Product overview
Filter mats provide a versatile solution for air filtration. Selected according to measured air pollution levels and cut to required dimensions, they ensure uniform air distribution and effective particulate capture.

Application

• Used in HVAC and ventilation units in spaces with medium air cleanliness requirements (e.g. hotels, office buildings, shopping centres).

Standards

• Filter classification: ISO 16890
• PN EN 779:2012
• Fire rating: F1 wg DIN 53438

Dimensions
Available in rolls and cut-to-size to customer specifications.

Materials
Constructed from polyester (PET) or polypropylene fibres arranged with a progressive structure; thermally or mechanically bonded, or fixed by binding methods.

Technical data filter mat (table)
FILTRATION CLASS | G2 | G3 | G3 | G4 | G4 | G4 | M5 | M5 | M5 | Carbon mat
Type | | 6305 | 6333 | 92130 | 93180 | 93181 | 94270 | 95592 | 95591 | 95590 | 5165
Grammage/Weight (g/m2) | | 100 | 130 | 130 | 220 | 220 | 380 | 320 | 500 | 600 | 260
Material | | 100 % PET | 100 % PET | 100 % PET | 100 % PET | 100 % PET | 100 % PET | 100 % PET | 100 % PET | 100% PET | Activated carbon-coated polyester
Roll dimensions (m) | | 2 x 100 | 2 x 80 | 2 x 60 | 2 x 20 | 2 x 20 | 2 x 20 | 2 x 20 | 2 x 20 | 2 x 20 | 2 x 125
Thickness (mm) | | 4-6 | 8 | 10-14 | 19-21 | 16-19 | 22-24 | 18-20 | 16-19 | 20-24 | 6
Max. permissible operating temperature (°C) | | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 150
Colour | | white | white | white-blue | white-blue | white | white | white with mesh | white with mesh | white with mesh | black

Features / Technical specifications

• Product name: Filter Mat
• Brand: BWF Envirotec
• Filtration classes available: G2, G3, G4, M5 and Carbon mat
• Typical product types/codes: 6305, 6333, 92130, 93180, 93181, 94270, 95592, 95591, 95590, 5165
• Grammage/weight range: from 100 g/m² up to 600 g/m² (depending on class)
• Materials: 100% PET (polyester) or polypropylene fibres; activated carbon-coated polyester for carbon mat
• Roll dimensions (examples): 2 x 100 m, 2 x 80 m, 2 x 60 m, 2 x 20 m, 2 x 125 m (depending on type)
• Thickness range: approx. 4 mm up to 24 mm depending on class
• Maximum operating temperature: typically 100 °C (carbon mat up to 150 °C)
• Colours: white, white-blue, white with mesh, black (carbon mat)
