Coarse pre-filtration filter mat 96950

Overview
Paint-Stop Mat and ANDREAE labyrinth filter paper for spray booths and paint walls, designed to capture paint overspray and remove particulate from the airflow.

Application

• Used in spray booths and painting walls to collect paint particles and remove them from the air precisely.

Material — Paint-Stop mat
100% glass fibre with a progressive structure and a laminated discharge side. The material is silicone free and acetone resistant. A green colour is on the air outlet side.

Available dimensions (Paint-Stop mat)

• Thickness: 1"; 2"; 3" or 4"
• Mat available in rolls; common widths: 0.75 m; 1 m; 1.25 m; 1.5 m; 2 m
• Can be cut to any size

Technical data Paint-Stop mat
FILTRATION CLASS | Type | Grammage/Weight (g/m2) | Material | Roll dimensions | Thickness | Max. permissible operating temperature (°C) | Colour
G2 | 96950 | 210 g/m2 | Paint-Stop | j/w | 2" | 100 °C | white-green
G2/3 | 96950 | 240 g/m2 | Paint-Stop | j/w | 3" | 100 °C | white-green
G2/3 | 96950 | 340 g/m2 | Paint-Stop | j/w | 4" | 100 °C | white-green

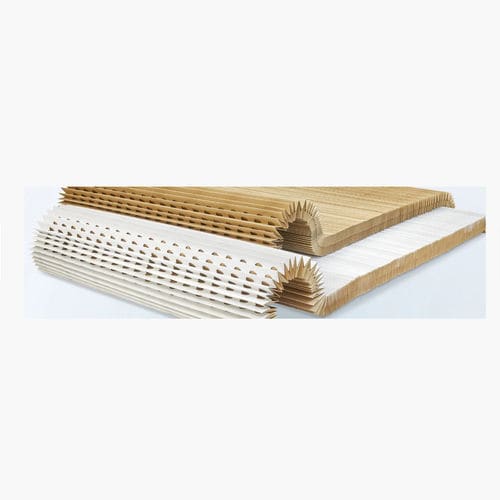

Material — Labyrinth type filter paper
Two layers of pleated, perforated cardboard glued together. Two versions available: brown or a white-brown colour.

Available dimensions (filter paper)

• Available widths: 0.75 m; 0.90 m; 1.00 m
• Each pack includes 10 m; can be cut to desired dimensions

Technical data filter paper
KIND | Type | Material | Roll dimensions | Max. permissible operating temperature (°C) | Colour
ANDREAE STARTER | without stops | Cardboard | j/w | 100 °C | white/bronze
ANDREAE ORIGINAL | with stops | Cardboard | j/w | 100 °C | white/bronze

Technical specifications

• Product family: Paint-Stop mat and labyrinth filter paper for spray booths
• Paint-Stop mat: 100% glass fibre, silicone free, acetone resistant, laminated discharge side, white-green outlet side
• Paint-Stop mat thickness options: 1"; 2"; 3"; 4"
• Paint-Stop mat grammage options: 210 g/m2 (G2), 240 g/m2 (G2/3), 340 g/m2 (G2/3)
• Paint-Stop mat maximum operating temperature: 100 °C
• Paint-Stop mat typical roll widths: 0.75 m, 1 m, 1.25 m, 1.5 m, 2 m (cut-to-size available)
• Filter paper: two-layer pleated perforated cardboard; versions: ANDREAE STARTER (without stops) and ANDREAE ORIGINAL (with stops)
• Filter paper available widths: 0.75 m, 0.90 m, 1.00 m; packs of 10 m (cut-to-size available)
• Filter paper maximum operating temperature: 100 °C
