Air filter

particulatepanelfor air treatment units

Overview
Final-stage minipleat filters for ventilation and cleanroom air handling. Designed to meet classified cleanroom and controlled environment requirements where high-efficiency particulate removal is required (medical, pharmaceutical, chemical, laboratory environments). Manufactured to comply with EN 1822:2009 filtration performance classes.

Construction

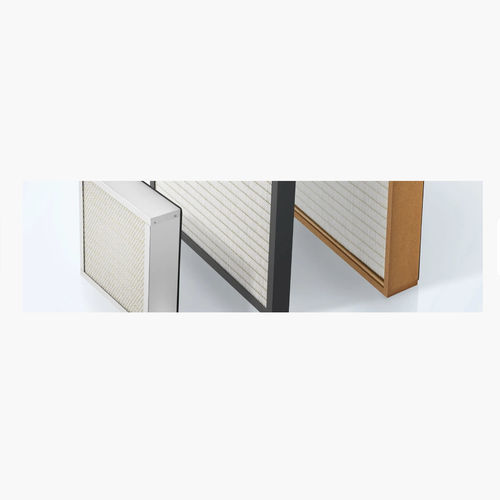

Pleated minipleat media with separators (aluminium foil, cotton thread or adhesive) mounted in a rigid frame. Frame options: MDF (wood), aluminium or galvanised steel. Front-facing elastic polyurethane seal ensures airtight installation.

Filtration class

• H10, H11, H12, H13, H14, U15 — according to EN 1822:2009

Standard dimensions

• Frame dimensions (width × height): 305 × 305 mm; 305 × 610 mm; 457 × 457 mm; 610 × 610 mm
• Frame thickness options: 68 mm, 78 mm, 150 mm, 292 mm

Material
Waterproof high-efficiency fibreglass paper composed of micro-fibreglass wrap combined with synthetic fibres, designed for stable performance and moisture resistance.

Technical data (table)
Columns correspond to typical construction variants (examples): Variant A — frame thickness 78 mm / minipleat 58 mm; Variant B — frame thickness 150 mm / minipleat 120 mm; Variant C — frame thickness 292 mm / minipleat 120 mm.
FILTER CLASS | Variant A | Variant B | Variant C
Frame thickness (mm) | 78 | 150 | 292
Minipleat thickness (mm) | 58 | 120 | 120
Type 610 x 610 mm — Airflow (m³/h) | 670 | 1920 | 1920
Type 305 x 610 mm — Airflow (m³/h) | 335 | 950 | 950
Type 305 x 305 mm — Airflow (m³/h) | 155 | 440 | 440
Initial pressure drop (Pa) | 150 | 250 | 250
Recommended final pressure drop (Pa) | 450 | 550 | 550
Max. permissible operating temperature (°C) | 80 | 80 | 80

Application

• Used as final-stage filters in HVAC and ventilation systems for environments requiring strict air cleanliness: medical facilities, pharmaceutical production, chemical processing, laboratories and similar controlled environments.

Technical specifications

• Filter classes: H10–H14, U15 (EN 1822:2009)
• Frame dimensions: 305×305, 305×610, 457×457, 610×610 mm
• Frame thickness options: 68, 78, 150, 292 mm
• Minipleat thickness options: 58 mm, 120 mm
• Airflow examples (H13): 610×610 mm — 670 / 1920 / 1920 m³/h (variants A/B/C); 305×610 mm — 335 / 950 / 950 m³/h; 305×305 mm — 155 / 440 / 440 m³/h
• Initial pressure drop: typically 150–250 Pa depending on construction
• Recommended final pressure drop: typically 450–550 Pa depending on construction
• Maximum operating temperature: 80 °C
• Filter medium: waterproof high-efficiency fibreglass paper with synthetic fibres
