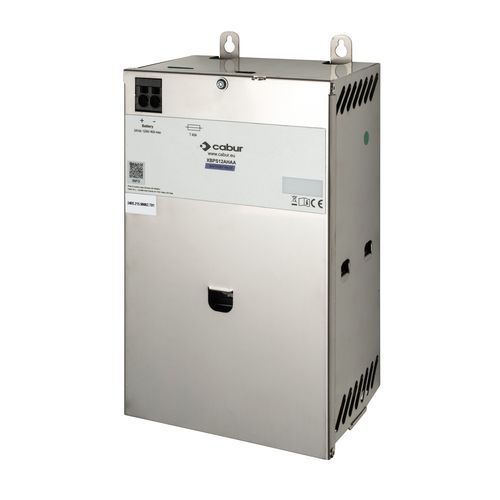

Battery holder XBPS12AHAA

Product overview
Cabur mod. XBPS12AHAA is a 24V battery holder module of the BPS series designed for service continuity. The module contains two 12V lead acid VRLA AGM batteries in the versions for 12 Ah batteries and is suitable for applications requiring uninterrupted power supply and automation systems.

Main features

• BPS-12Ah/AA battery holder module with 24Vdc 12Ah AGM battery
• 24V battery holder module containing two 12V lead acid VRLA AGM batteries
• Available versions for 1.2Ah, 3.4Ah, 7.2Ah, 12Ah batteries
• Quick connection with 0.2 … 16 mm² push-in terminal and integrated protection fuse (40 A)
• Panel mounting, aluminium housing, protection degree IP20

Additional information
Code: XBPS12AHAA
Type: BPS-12Ah/AA
Series: BPS
HS code: 85072020
Input rated voltage: 24 Vdc
Nominal capacity: 12 Ah
Max. charge current: 3.6 A
Charging voltage: 27.6 Vdc (20°C)
Parallel connection of more battery packs: possible
Series connection of more battery packs: no
Battery safety fuse: 40 A (spare fuse present)
Battery type: AGM VRLA
Operating temperature range: –20…+50°C
Overvoltage category / pollution degree: III / 2
Protection degree: IP20
Connection terminal: 0.2 … 16 mm² push-in
Housing material: aluminium
Dimensions (LxHxD): 169x115x265 mm
Approximate weight: 8.5 Kg
Spare battery: 8911120 (1 piece)
Approvals and markings: CE

Notes
Designed to ensure service continuity for automation and control solutions. For different nominal capacities choose the corresponding BPS version.
