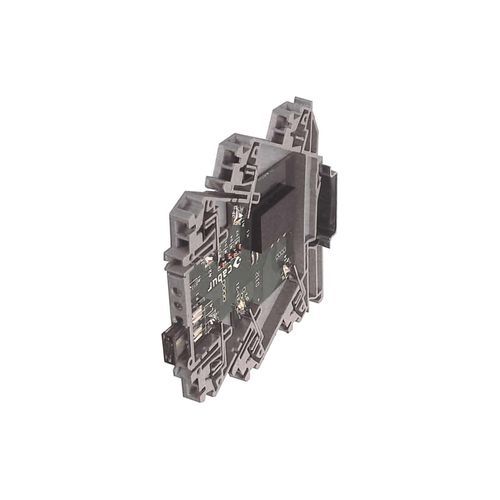

24VDC electromechanical relay XCKR16

SPDTPNPDIN rail

Short description
CKR16 single-channel electromechanical relay module XCKR16 with a 24 Vac/dc coil, SPDT (1 form C) AgSnO2 contact rated 6 A. Designed for rail mounting with spring terminals; non-pluggable.

Main features

• Non-pluggable relay
• Accepts PNP and NPN control signals
• Available plug-in jumpers for potential distribution
• LED status indicator for input
• Coil protection: free-wheel diode

Notes

• Manufacturer and relay model are indicative; technical data are to be considered typical
• Special versions available on request (availability on demand)
• The output contact is protected by a replaceable 7.5 A fuse; lower values can be used according to load and wiring; values greater than 7.5 A are not allowed. The fuse is suitable for SELV ≤ 50 Vac and ≤ 75 Vdc
• The final module must always be protected with the CK/PT end plate to ensure an IP20 protection degree

Characteristics / Technical specifications

• Series: CKR
• Code: XCKR16
• Type: CKR16
• HS code: 85364190
• Input rated voltage: 24 Vac/dc ±10%
• Pull-in / drop-out voltage: 18 V / 1.2 V
• Current consumption: 15 mA ±10%
• Turn ON / OFF time: 10 ms / 5 ms
• Protection circuit (input): Free-wheel diode
• Connection terminal (input): 2.5 mm² (spring)
• Input channels: 1 not pluggable
• Contact type (output): SPDT, 1 form C, AgSnO2
• Nominal current (output): 6 A (30 Vac)
• Continuous current / Peak: 10 A peak
• Max fuse current (output): 7.5 A (replaceable fuse)
• Connection type (output): 2.5 mm² spring type
• Protection circuit device: replaceable fuse (2)
• Operating temperature range: -20…+60 °C
• Input / output isolation: 3 kVac / 60 s
• Protection degree: IP00 / IP20 (with end section)
• Overvoltage category / Pollution degree: II / 2
• Status indication: LED 'Input'
• Housing material: UL94V-0 plastic
• Dimensions (L x H x D): 6 x 91 x 100 mm
• Approximate weight: 40 g
• Mounting: on a rail, side by side (IEC60715/TH35-7.5)
• End section: XCKPT
• Available plug-in jumpers for potential distribution: PTC/4/02 (2 poles); PTC/4/03 (3 poles); PTC/4/04 (4 poles); PTC/4/05 (5 poles); PTC/4/10 (10 poles); PTC/4/00 (42 poles)
