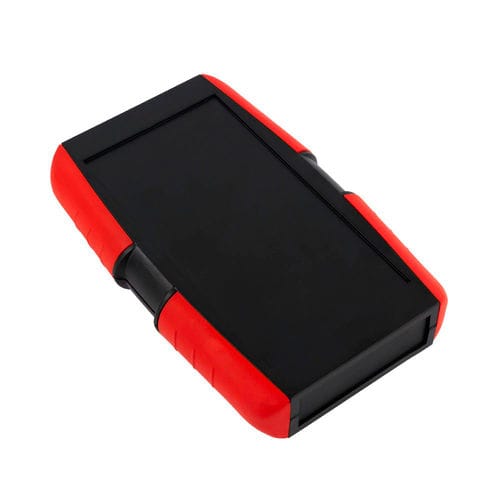

Handheld enclosure CHH661BBK - 66 Series

rectangularABSfor general purposes

CHH661BBK - 66 SERIES HANDHELD RUBBER CORNER ENCLOSURE WITH BATTERY DOOR, BLACK, 145X95X25MM This innovative handheld ABS enclosure is available in two body colours and in a selection of sizes. The enclosure also features a choice of different coloured rubber corners for added protection and ergonomic feel (sold separately). Ideal for industrial portable measurement equipment and testing devices Moulded in high impact ABS, UL94-V0 Screwless assembly via four soft-grip corners Battery compartment lid with M3 retaining screw Optional retaining screws for added security Recesses in lid and base for membrane keypads or overlays PCB pillars in lid and base 66 series has been designed to meet the requirements of IP54 Or additionally, IP65 with the optional gasket accessory Suitable for handheld diagnostic equipment, IoT wireless devices and measurement electronics External Length (mm) - 145 External Width (mm) - 95 External Height (mm) - 25 Internal Length (mm) - 105 Internal Width (mm) - 55 Internal Height (mm) - 15 Weight (G) - 150 Base Material - Plastic Material Type - ABS UL94-V0 Colour - Black UL Rating - UL94-V0 IK Rating - N/A IP Rating - IP65 Special Features - Battery Compartment Brand - CamdenBoss Size - 145 x 95 x 25 Battery Door - Yes Battery Compartment Type - AA or PP3 Development Board - N/A
