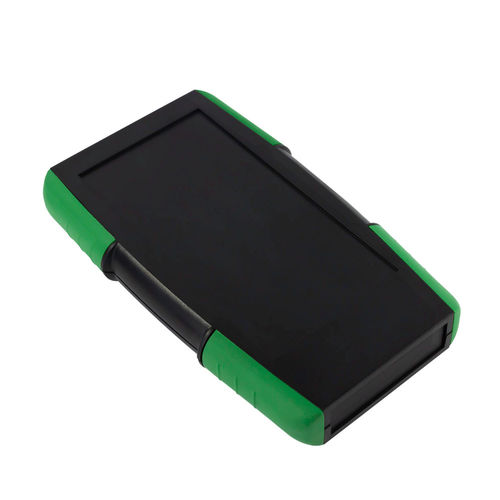

Handheld enclosure CHH663NBK - 66 Series

rectangularABSelectronic equipment

CHH663NBK - 66 SERIES HANDHELD RUBBER CORNER ENCLOSURE, NO BATTERY DOOR, BLACK, 185X110X25MM This innovative handheld ABS enclosure is available in two body colours and in a selection of sizes. The enclosure also features a choice of different coloured rubber corners for added protection and ergonomic feel (sold separately). Ideal for industrial portable measurement equipment and testing devices Moulded in high impact ABS, UL94-V0 Screwless assembly via four soft-grip corners Battery compartment lid with M3 retaining screw Optional retaining screws for added security Recesses in lid and base for membrane keypads or overlays PCB pillars in lid and base 66 series has been designed to meet the requirements of IP54 Or additionally, IP65 with the optional gasket accessory External Length (mm) - 185 External Width (mm) - 110 External Height (mm) - 25 Internal Length (mm) - 146 Internal Width (mm) - 70 Internal Height (mm) - 15 Weight (G) - 151 Base Material - Plastic Material Type - ABS UL94-V0 Colour - Black UL Rating - UL94-V0 IK Rating - N/A IP Rating - IP65 Brand - CamdenBoss Size - 185 x 110 x 25 Development Board - N/A
