Handheld enclosure CHH665BBK - 66 Series

rectangularABSelectronics

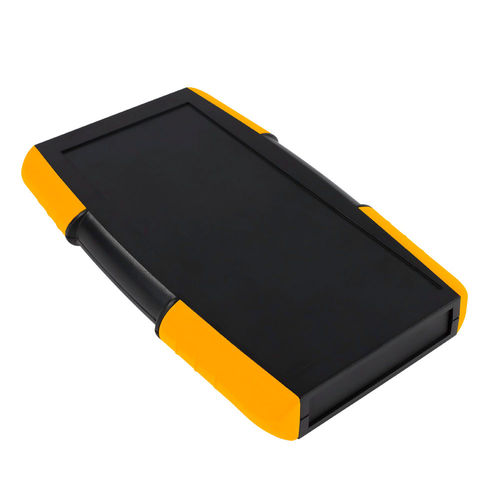

CHH665BBK - 66 SERIES HANDHELD RUBBER CORNER ENCLOSURE WITH BATTERY DOOR, BLACK, 200X120X25MM This innovative handheld ABS enclosure is available in two body colours and in a selection of sizes. The enclosure also features a choice of different coloured rubber corners for added protection and ergonomic feel (sold separately). Ideal for industrial portable measurement equipment and testing devices Moulded in high impact ABS, UL94-V0 Screwless assembly via four soft-grip corners Battery compartment lid with M3 retaining screw Optional retaining screws for added security Recesses in lid and base for membrane keypads or overlays PCB pillars in lid and base 66 series has been designed to meet the requirements of IP54 Or additionally, IP65 with the optional gasket accessory External Length (mm) - 200 External Width (mm) - 120 External Height (mm) - 25 Internal Length (mm) - 160 Internal Width (mm) - 80 Internal Height (mm) - 15 Weight (G) - 181 Base Material - Plastic Material Type - ABS UL94-V0 Colour - Black UL Rating - UL94-V0 IK Rating - N/A IP Rating - IP65 Special Features - Battery Compartment Brand - CamdenBoss Size - 200 x 120 x 25 Battery Door - Yes Battery Compartment Type - AA or PP3 Development Board - N/A
