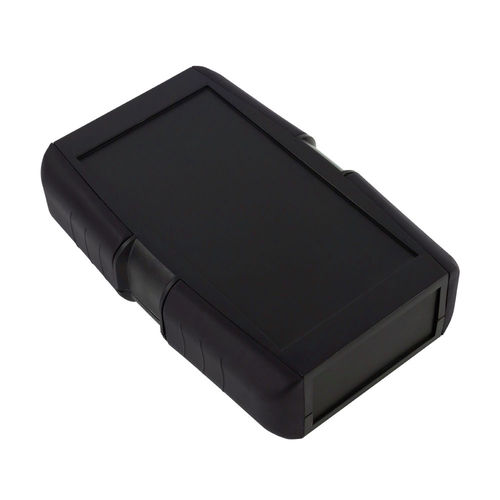

CHH662NBK - 66 SERIES HANDHELD RUBBER CORNER ENCLOSURE, NO BATTERY DOOR, BLACK, 145X95X35MM
This innovative handheld ABS enclosure is available in two body colours and in a selection of sizes. The enclosure also features a choice of different coloured rubber corners for added protection and ergonomic feel (sold separately). Ideal for industrial portable measurement equipment and testing devices
Moulded in high impact ABS, UL94-V0
Screwless assembly via four soft-grip corners
Battery compartment lid with M3 retaining screw
Optional retaining screws for added security
Recesses in lid and base for membrane keypads or overlays
PCB pillars in lid and base
66 series has been designed to meet the requirements of IP54
Or additionally, IP65 with the optional gasket accessory
External Length (mm) - 145
External Width (mm) - 95
External Height (mm) - 35
Internal Length (mm) - 105
Internal Width (mm) - 55
Internal Height (mm) - 20
Weight (G) - 122
Base Material - Plastic
Material Type - ABS UL94-V0
Colour - Black
UL Rating - UL94-V0
IK Rating - N/A
IP Rating - IP65
Brand - CamdenBoss
Size - 145 x 95 x 35
Development Board - N/A
