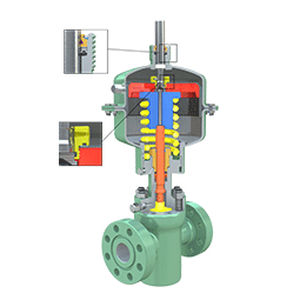

Pneumatic valve actuator MA

linearmembrane

Reliable, cost-effective MA Series pneumatic diaphragm actuators can be used with most manufacturers' gate valves. They are recommended when instrument air is available. Fail-safe design Rising stem design Cameron seal technology Actuator interchangeability Fixed drift adjustment Corrosion-resistant materials Optional devices and accessories Actuator specifications API Spec 6A actuators for use with 1 13/16- through 4 1/8-in nominal gate valves API Spec 6A Appendix F, PR-2 qualified 0 to 180 degF [–18 to 66 degC] standard temperature rating (other temperatures available) 12-, 16-, and 20-in standard diaphragm sizes for these valve groups Wide range of available options and accessories Bonnet specifications Standard stem and bonnet material (API material and temperature class dependent) PSL 1, 2, 3, and 4 available Standard bonnet backseat test port provided Standard packing leak indicator port provided
