Synchronous motor dSg80-2A
three-phase1000 Vcast iron

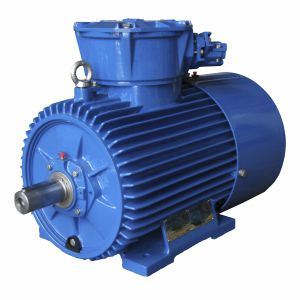

Synchronous motor - dSg80-2A - Cantoni Motor - three-phase / 1000 V / cast iron
Synchronous motor - dSg80-2A - Cantoni Motor - three-phase / 1000 V / cast iron
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
1000 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP54, ATEX, explosion-proof
Number of poles
2-pole
Cooling mechanism
IC411
Applications
for the mining industry
Other characteristics
IEC
Power

750 W
(1.02 hp)

Intensity

0.67 A

Torque

2.6 Nm
(1.917662 ft.lb)

Rotational speed

2,770 rpm
(17,404.4233 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Winding connection Y Starting current ratio [ 4.9 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 76.0% Rated output [HP] 1 Efficiency at 3/4 of full load [ 76.5% Service factor [ 1.0 Efficiency at rated (full) load [ 75.0% Duty S1 Power factor at 2/4 of full load [ 0.70 Power factor at 3/4 of full load [ 0.80 Power factor at rated (full) load [ 0.86 Starting torque ratio [ 2.4 Sound pressure level [dB] 60 Frame size 80 Sound power level [dB] 70 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side 62042Z Frequency converter supply on demand Bearing on ND-side 62042Z Mounting arrangement IMB3/B5/B35 Bearings regreasing no
