Synchronous motor ExSg112M-6-2G T4/2D
three-phase400 Valuminium

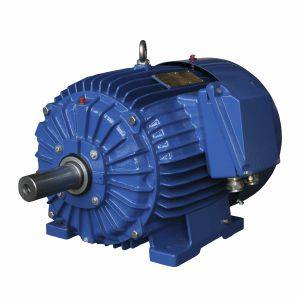

Synchronous motor - ExSg112M-6-2G T4/2D - Cantoni Motor - three-phase / 400 V / aluminium
Synchronous motor - ExSg112M-6-2G T4/2D - Cantoni Motor - three-phase / 400 V / aluminium
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
400 V
Configuration
aluminium, squirrel cage
Protection class
IP66, ATEX, dust-proof
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

1.6 kW
(2.18 hp)

Intensity

3.9 A

Torque

15.8 Nm
(11.653482 ft.lb)

Rotational speed

970 rpm
(6,094.6897 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 3.4 Winding connection ∆ Starting current ratio [ 7.9 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 75.8% Efficiency at 3/4 of full load [ 79.8% Service factor [ 1.0 Efficiency at rated (full) load [ 81.1% Duty S1 Rated current [A] 3.9 Synchronous speed [rpm] 1000 Power factor at 2/4 of full load [ 0.52 Rated speed [rpm] 970 Power factor at 3/4 of full load [ 0.65 Power factor at rated (full) load [ 0.73 Starting torque ratio [ 2.8 Sound pressure level [dB] 60 Frame size 112 Sound power level [dB] 70 Terminal box position top Starting method DOL or Y/∆ Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63062Z Frequency converter supply no Bearing on ND-side 63062Z
