Synchronous motor ExSh71-6B T4
three-phase400 Valuminium

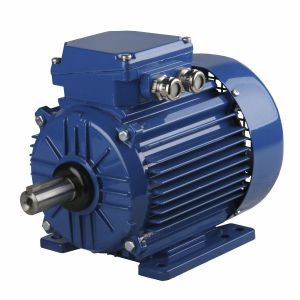

Synchronous motor - ExSh71-6B T4 - Cantoni Motor - three-phase / 400 V / aluminium
Synchronous motor - ExSh71-6B T4 - Cantoni Motor - three-phase / 400 V / aluminium
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
400 V
Configuration
aluminium, squirrel cage
Protection class
IP66, ATEX, increased safety
Number of poles
6-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

250 W
(0.34 hp)

Intensity

0.85 A

Torque

2.74 Nm
(2.02092 ft.lb)

Rotational speed

900 rpm
(5,654.8668 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

Breakdown torque ratio [ 1.6 Winding connection Y Starting current ratio [ 3 Frequency [Hz] 50 Rated output [HP] 0.33 Service factor [ 1.0 Efficiency at rated (full) load [ 64.0% Duty S1 Synchronous speed [rpm] 1000 Power factor at rated (full) load [ 0.67% Starting torque ratio [ 1.6 Frame size 71 Terminal box position top Starting method DOL Possibility of terminal box rotation yes Insulation class F Bearing on D-side 62032Z Frequency converter supply no Bearing on ND-side 62032Z Mounting arrangement IMB3/B5/B35/B14 Bearings regreasing no

Catalogs

No catalogs are available for this product.

See all of Cantoni Motor‘s catalogs
Go to the Cantoni Motor website for more information

Other Cantoni Motor products

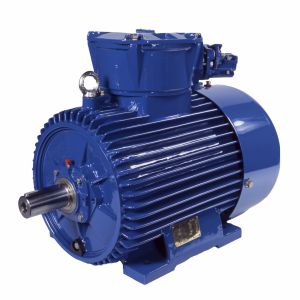

EX Motors
