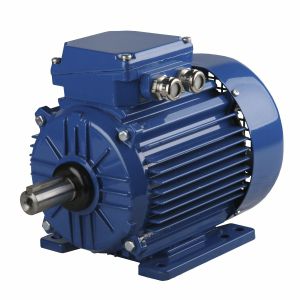

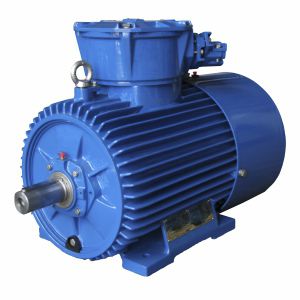

Synchronous motor (E)CSg(b)80-2A
three-phase400 Vsquirrel cage

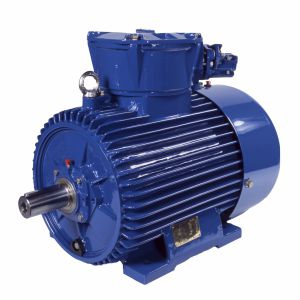

Synchronous motor - (E)CSg(b)80-2A - Cantoni Motor - three-phase / 400 V / squirrel cage
Synchronous motor - (E)CSg(b)80-2A - Cantoni Motor - three-phase / 400 V / squirrel cage
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
synchronous, three-phase
Voltage
400 V
Configuration
squirrel cage, cast iron
Protection class
IP54, explosion-proof, flameproof
Number of poles
2-pole
Cooling mechanism
IC411
Applications
for the chemical industry
Power

750 W
(1.02 hp)

Intensity

1.7 A

Torque

2.6 Nm
(1.917662 ft.lb)

Rotational speed

2,770 rpm
(17,404.4233 rad.min-1)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 50 °C
(122 °F)

Description

Breakdown torque ratio [ 3 Winding connection Y Starting current ratio [ 4.9 Frequency [Hz] 50 Efficiency at 2/4 of full load [ 76.0% Rated output [HP] 1 Efficiency at 3/4 of full load [ 76.5% Service factor [ 1.0 Efficiency at rated (full) load [ 75.0% Duty S1 Synchronous speed [rpm] 3000 Power factor at 2/4 of full load [ 0.70 Rated speed [rpm] 2770 Power factor at 3/4 of full load [ 0.80 Power factor at rated (full) load [ 0.86 Starting torque ratio [ 2.4 Sound pressure level [dB] 60 Frame size 80 Sound power level [dB] 70 Terminal box position top Starting method DOL Possibility of terminal box rotation no Insulation class F Bearing on D-side 62042Z Frequency converter supply on request - execution (-f) Bearing on ND-side 62042Z
