ATEX motor (E)cSTe(b)160 series
induction3-phase400 V

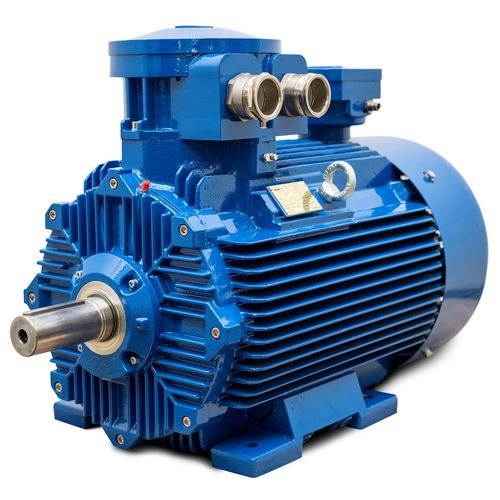

ATEX motor - (E)cSTe(b)160 series - Cantoni Motor - induction / 3-phase / 400 V
ATEX motor - (E)cSTe(b)160 series - Cantoni Motor - induction / 3-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, 3-phase
Voltage
400 V
Configuration
squirrel cage, cast iron, cast iron frame, with cast iron flange
Protection class
IP55, ATEX, explosion-proof, for hazardous areas, increased safety, antispark
Efficiency classes
IE3
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Cooling mechanism
air-cooled, IC411
Applications
industrial, for pump, for the chemical industry, for the mining industry, for the oil and gas industry, for the textile industry, for water pumps, for centrifugal pumps, for vacuum pumps
Other characteristics
custom, IEC
Power

Max.: 18.5 kW
(25.15 hp)

Min.: 4 kW
(5.44 hp)

Intensity

Max.: 32 A

Min.: 9.2 A

Torque

Max.: 108 Nm
(79.656712 ft.lb)

Min.: 36 Nm
(26.552237 ft.lb)

Rotational speed

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Min.: 750 rpm
(4,712.389 rad.min-1)

Diameter

160 mm
(6.3 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

One speed explosion-proof motors according to IEC 60079-0, IEC 60079-1 and IEC 60079-7 standard with ATEX certificate. Motors are designed to equipment installed in rooms and areas (zone 1 or 2), in which explosive mixtures of combustible gas and vapour with air, classified as group II, temperature class T5 (maximum surface temperature below 100°C) or lower, may appear
