ATEX motor (E)cSTe(b)250 series
inductionthree-phase400 V

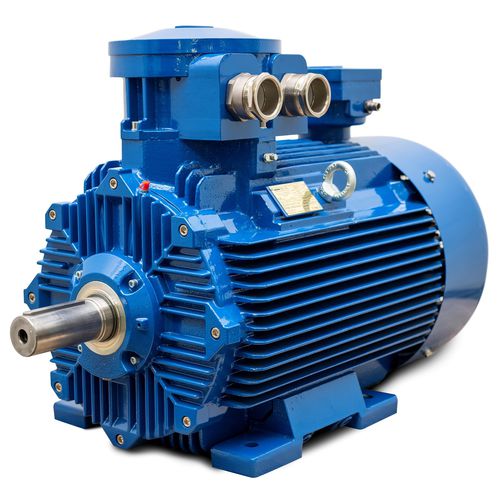

ATEX motor - (E)cSTe(b)250 series - Cantoni Motor - induction / three-phase / 400 V
ATEX motor - (E)cSTe(b)250 series - Cantoni Motor - induction / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
400 V
Configuration
squirrel cage, cast iron, squirrel-cage rotor, TEFC, cast iron frame, with cast iron flange
Protection class
IP55, ATEX, explosion-proof, flameproof, increased safety
Efficiency classes
IE3
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Cooling mechanism
air-cooled, IC411, forced air-cooled, self-ventilated
Applications
industrial, for pump, for fans, for the chemical industry, for the oil and gas industry, agricultural, for water pumps, for centrifugal pumps, oil & gas rigs
Other characteristics
custom, high-efficiency, IEC
Power

Min.: 30 kW
(40.79 hp)

Max.: 75 kW
(101.97 hp)

Intensity

Min.: 59 A

Max.: 130 A

Torque

Min.: 177 Nm
(130.5485 ft.lb)

Max.: 483 Nm
(356.242518 ft.lb)

Rotational speed

Min.: 750 rpm
(4,712.389 rad.min-1)

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Diameter

250 mm
(9.84 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

One speed explosion-proof motors according to IEC 60079-0, IEC 60079-1 and IEC 60079-7 standard with ATEX certificate. Motors are designed to equipment installed in rooms and areas (zone 1 or 2), in which explosive mixtures of combustible gas and vapour with air, classified as group II, temperature class T5 (maximum surface temperature below 100°C) or lower, may appear

Catalogs

No catalogs are available for this product.

See all of Cantoni Motor‘s catalogs
Go to the Cantoni Motor website for more information

Other Cantoni Motor products

IE3 ATEX - Explosion Protected 3-Phase Induction motors; Flameproof motors
