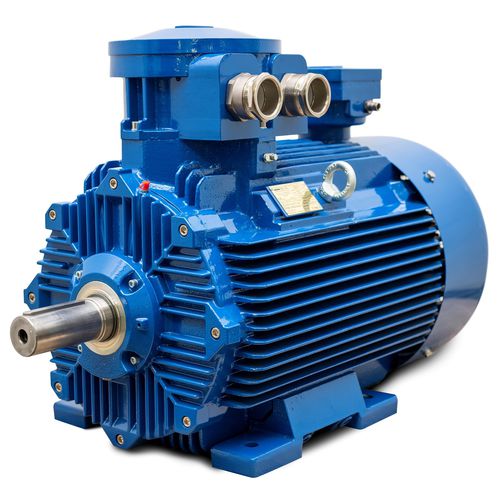

ATEX motor (E)cSTe(b)200 IE3
3-phaseinduction400 V

ATEX motor
ATEX motor
Add to favorites
Compare this product


Characteristics

AC/DC
3-phase
Type
induction
Voltage
400 V
Protection class
explosion-proof, ATEX, flameproof, antispark
Configuration
cast iron, squirrel cage, squirrel-cage rotor, cast iron frame, TEFC, with cast iron flange
Efficiency classes
IE3
Number of poles
4-pole, 6-pole, 8-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for air compressors, industrial, for ventilators, oil & gas rigs, for cutting machine, for pumps, for the oil and gas industry, for crusher, for medical equipment, for conveyors, for wood-processing machines, agricultural, oil pump, packaging machine, for drills, heavy-duty, for crane, cooling tower, for water pumps, for winches, for the chemical industry, for compressors, for the mining industry
Other characteristics
high-efficiency
Power

Min.: 15 kW
(20.394 hp)

Max.: 45 kW
(61.183 hp)

Torque

Min.: 97 Nm
(71.5435 ft.lb)

Max.: 240 Nm
(177.0149 ft.lb)

Rotational speed

Min.: 750 rpm
(4,712.39 rad.min-1)

Max.: 3,000 rpm
(18,849.56 rad.min-1)

Diameter

200 mm
(7.87 in)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 40 °C
(104 °F)

Description

EcST(K,L)e… Motor with flame-proof enclosure and with increased safety terminal box. cST(K,L)e… Motor and terminal box with flame-proof enclosure. In standard execution main terminal box is in increased safety design (Ex eb) equipped with 3 supply terminals for DOL or VSD ("-f" execution) supply and one cable gland. On request motors can be equipped with fully flameproof main terminal box (Ex db). Three-phase squirrel-cage explosion proof motors for chemical industry One speed explosion-proof motors according to IEC 60079-0, IEC 60079-1 and IEC 60079-7 standard with ATEX certificate. Motors are designed to equipment installed in rooms and areas (zone 1 or 2), in which explosive mixtures of combustible gas and vapour with air, classified as group II, temperature class T5 (maximum surface temperature below 100°C) or lower, may appear Option: Flameproof motors with electromagnetic brake: HEX DC electromagnetic brakes HEX brakes HEX brakes provide protection: • against methane and coal dust explosion for the I group of devices, category M2 (I M2 Ex db [ia] I Mb) • against explosion of gases for the II group of devices, category 2G (I 2G Ex db [ia] IIB T4 Gb) • against dust explosion for the II group of devices, category 2D (II 2D Ex tb [ia] IIIC T125°C Db)
