ATEX motor (E)cSTe(b)225 series
inductionthree-phase400 V

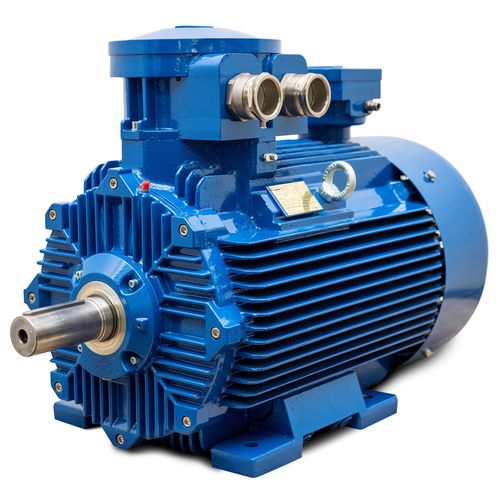

ATEX motor - (E)cSTe(b)225 series - Cantoni Motor - induction / three-phase / 400 V
ATEX motor - (E)cSTe(b)225 series - Cantoni Motor - induction / three-phase / 400 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
400 V
Configuration
cast iron, cast iron frame, with cast iron flange, vertical
Protection class
IP55, IP65, ATEX, explosion-proof, flameproof, increased safety
Efficiency classes
IE3
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Cooling mechanism
air-cooled, forced air-cooled, self-ventilated
Applications
for the chemical industry, for conveyors, industrial, for pump, packaging machine, for crusher, for air compressors, for water pumps, for fans, for compressors, oil & gas rigs, heavy-duty, for centrifugal pumps, for cranes, for the mining industry, for winches, agricultural, for cutting machines, for wood-processing machines, for the oil and gas industry, for drills
Other characteristics
custom, high-efficiency, IEC
Power

Max.: 55 kW
(74.78 hp)

Min.: 18.5 kW
(25.15 hp)

Intensity

Max.: 98 A

Min.: 38.5 A

Torque

Max.: 357 Nm
(263.309687 ft.lb)

Min.: 145 Nm
(106.946512 ft.lb)

Rotational speed

Max.: 3,000 rpm
(18,849.5559 rad.min-1)

Min.: 750 rpm
(4,712.389 rad.min-1)

Diameter

225 mm
(8.86 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

One speed explosion-proof motors according to IEC 60079-0, IEC 60079-1 and IEC 60079-7 standard with ATEX certificate. Motors are designed to equipment installed in rooms and areas (zone 1 or 2), in which explosive mixtures of combustible gas and vapour with air, classified as group II, temperature class T5 (maximum surface temperature below 100°C) or lower, may appear
