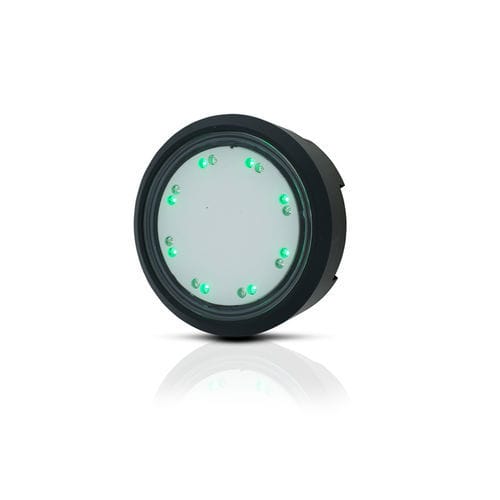

Capacitive push-button switch CHT3-4
IP69Kindustrialcustom

Capacitive push-button switch - CHT3-4 - CAPTRON - IP69K / industrial / custom
Capacitive push-button switch - CHT3-4 - CAPTRON - IP69K / industrial / custom
Capacitive push-button switch - CHT3-4 - CAPTRON - IP69K / industrial / custom - image - 2
Capacitive push-button switch - CHT3-4 - CAPTRON - IP69K / industrial / custom - image - 3
Capacitive push-button switch - CHT3-4 - CAPTRON - IP69K / industrial / custom - image - 4
Capacitive push-button switch - CHT3-4 - CAPTRON - IP69K / industrial / custom - image - 5
Add to favorites
Compare this product
Go to the CAPTRON website for more information

Characteristics

Type
capacitive
Protection level
IP69K
Other characteristics
industrial, custom, custom

Description

Description
  • Capacitive push-button with static function
  • For 22.5 mm mounting holes
  • Ø 60 mm total diameter, Ø 50 mm active area
  • M18x1 knurled-nut mounting
  • Height: 25 mm


Application
BUILDING TECHNOLOGY | INDUSTRIAL AUTOMATION

Customization / Options
  • Custom symbols
  • Optional tactile feedback (vibration)
  • Optional acoustic feedback
  • Optional relay output


Features
  • Housing color: traffic black (RAL 9017)
  • Tactile feedback: vibration
  • Optical feedback: 16 alternating LEDs (max. 2 colors)
  • Operating modes: Static (permanent signal), Dynamic (pulse-limited), Semi-automatic, Manual
  • Switching outputs: PNP transistor; optional potential-free relay
  • Front protection: IP69K (water- and oil-tight)


Downloads (available items shown on product page)
  • Instruction manual SENSORswitches CHT3-4 (EN / DE)
  • Certificates and conformity documents (EN45545, EN50155, TSI-PRM, ECE-R118, CSA, EC type examination)
  • SENSORswitch product catalog, configuration guide and symbol catalog


Technical specifications
  • Supply voltage: 24 V DC (16.8…32 V)
  • Output signal: approx. 300 ms (dynamic); permanent signal for static function
  • Mounting: 22.5 mm mounting hole; knurled nut M18x1
  • Optical feedback: 16 alternating LEDs (max. 2 colors)
  • Tactile feedback: vibration
  • Connection options: stranded wires; M8 connector; cable + AMP 6.3; JST; terminal block
  • Output: PNP (variants/optional: potential-free relay output)
  • Reverse polarity protection: all lines protected
  • Short-circuit/overload protection
  • Voltage drop: max. 3 V at 400 mA
  • Current consumption at 24 V: max. 30 mA
  • Operating temperature: -30°C…+80°C (dynamic); 0°C…+55°C (static)
  • Front protection rating: IP69K
  • Housing material: Delrin (POM)
  • Switch surface material: Polycarbonate (PC)
