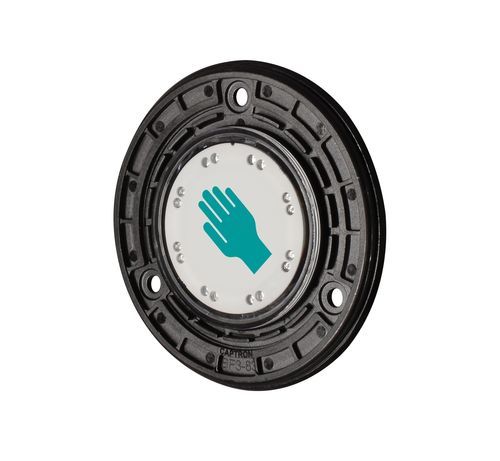

Capacitive push-button switch CHT3-1

reinforcedIP69KNO

Product description
The capacitive pushbutton sensor CHT3-1 (dynamic) provides a touch-activated output pulse of approximately 300 ms. With a large actuation area of Ø 50 mm and a compact overall diameter of 88 mm with only 7 mm profile height, it is designed for flexible integration in machine and plant engineering.
The unit is fixed with three screws; different colored cover rings in glass-fibre reinforced polycarbonate can be fitted to hide the screws. The fully potted electronics make the CHT3 extremely robust and 100% water- and oil-tight (IP69K), suitable for harsh industrial environments.

Scope of delivery

• Sensor unit
• Mounting flange (preassembled)
• Operating manual

Not included

• Colored cover ring - order separately
• Mounting screws

Technical data
Supply voltage: DC 24 V (16.8…32 V)
Actuation principle: capacitive
Actuation force: none required
Optical feedback: 8 green LEDs; 8 red LEDs
Mounting: screw mounting (3x M4)
Connection: M8 connector, 4-pin
Output: PNP-NO
Output pulse: approx. 300 ms
Reverse polarity protection: all lines protected
Short-circuit protection: short-circuit and overload protected
Voltage drop: max. 3 V at 400 mA
Current consumption at 24 V: max. 30 mA
Operating temperature: -30°C…+80°C
Protection rating: front side IP69K
Housing material: polycarbonate (PC) reinforced with glass fiber

Characteristics / Specifications

• Model: CHT3-1
• Actuation area Ø: 50 mm
• Overall diameter: 88 mm
• Profile height: 7 mm
• Protection class: IP69K (front side)
• Electronics: fully potted, water- and oil-tight
• LED indicator: 8 green / 8 red
• Connection: M8, 4-pin
• Output type: PNP, normally open (NO)
• Supply voltage: DC 24 V (16.8–32 V)
