Chamber oven

bellrotary retortsintering

Overview
Large industrial ovens and furnaces designed for production and heavy-duty applications. Furnaces can be specified with hard-wearing chamber hearths and higher-rated heating elements to accelerate heat-up and extend component life.

Production furnaces
Production furnaces with maximum operating temperatures up to 3000°C can be custom built to meet process requirements. Options include continuous production layouts, fast loading/unloading and integrated quality-control features. To minimise downtime during cool-down, production furnaces are often fitted with interchangeable twin hearth plates or twin retorts so one unit cools while the other is loaded.

Loading of heavy loads
Manual or automated loading trolleys are available on request. Advanced loading systems can be supplied to handle heavy or bulky components and to integrate with plant automation.

Annual service contracts
Annual service and maintenance contracts are available to reduce unplanned downtime and to preserve furnace performance and safety.

Examples

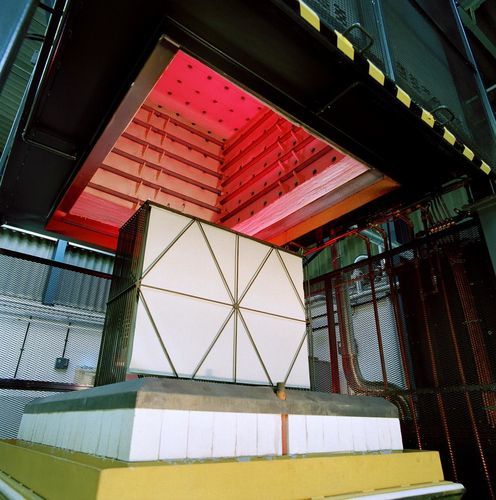

• Custom-designed elevator-hearth furnace up to 1300°C for industrial production
• Custom retort furnace for carbonisation in an argon atmosphere with ~1 m³ working volume; Inconel retort, max 1100°C, forced cooling for 24-hour cycles; dual-hinged retort doors; graphite pallet system
• Top-hat furnace with twin-bell retorts and digital six-channel data logger
• Moving-wall coke test oven up to 1300°C for 227 kg load
• Twin-bogie elevator-hearth furnace up to 1700°C for sintering boron nitride ceramic parts
• Three-chamber vertical shaft oven designed for the aerospace industry

Technical characteristics / specifications

• Maximum operating temperature: production furnaces up to 3000°C
• Heavy-duty options: hard-wearing chamber hearth and higher-rated heating elements for faster heat-up and extended service life
• Production features: continuous production configurations; interchangeable twin hearth plates or twin retorts to reduce turnaround time
• Loading: manual or automated trolleys; advanced loading concepts available for heavy loads
• Example retort furnace specification: ~1 m³ working volume, Inconel retort, max 1100°C, forced cooling to permit 24-hour cycles, dual-hinged retort doors, graphite pallet system
• Example capacities: elevator-hearth furnaces to ~1300°C; twin-bogie elevator-hearth furnace to ~1700°C; moving-wall ovens for ~227 kg loads; multi-chamber vertical shaft ovens for aerospace applications
