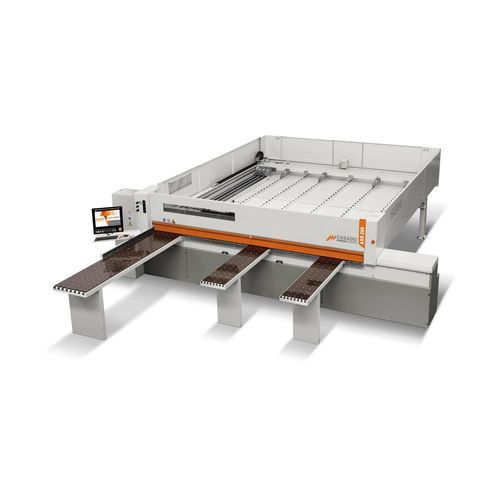

Panel saw AXO 200

horizontalwoodfor panels

Description
Compact panel saw designed for efficient cutting in limited spaces. The AXO 200 provides a comprehensive standard configuration and a broad range of optional equipment, enabling fast setup for small production batches and a short return on investment.

Advantages

• Flexibility: Compared to traditional machines, the AXO 200 cuts faster, reduces labour and improves the finishing quality of the end product. Rapid ROI even with small production lots. A large number of standard features and many optional accessories are available.
• Sturdiness: Deflection-free, high-rigidity steel frame with tubular structure.

Technical data (table)
AXO 200
Ripping capacity: 3300/3800/4300 mm
Pusher stroke: 2100/3200/3200 mm
Blade projection: 70 mm
Saw carriage feed speed: 6 ÷ 60 m/min (std)
0 ÷ 100 m/min (opt)
Max. pusher return speed (standard): 60 m/min
Max. pusher return speed (optional): 70 m/min
Main motor power 50 Hz (S6): 9 kW (12 Hp); optional up to 15 kW
Scoring motor power 50 Hz (S6): 1.5 kW (2 Hp)

Technical specifications

• Model: AXO 200
• Ripping capacity: 3300/3800/4300 mm
• Pusher stroke: 2100/3200/3200 mm
• Blade projection: 70 mm
• Saw carriage feed speed (standard): 6 ÷ 60 m/min
• Saw carriage feed speed (optional): 0 ÷ 100 m/min
• Max. pusher return speed (standard): 60 m/min
• Max. pusher return speed (optional): 70 m/min
• Main motor power 50 Hz (S6): 9 kW (12 Hp); optional up to 15 kW
• Scoring motor power 50 Hz (S6): 1.5 kW (2 Hp)
