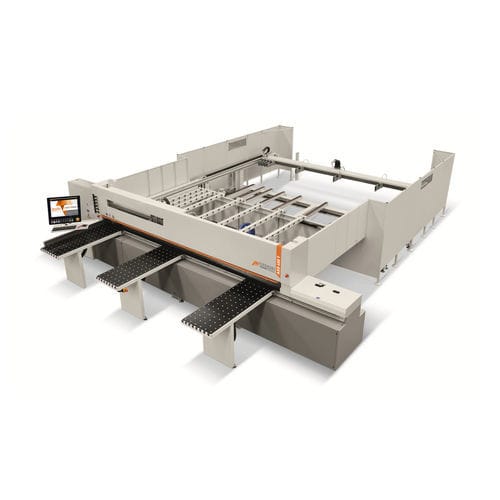

Circular saw AXO series

panelwoodfor panels

Overview
Casadei's AXO series includes two rear-loading models, the AXO 400 T and the AXO 500 T HD, engineered to automate continuous feeding of panel stacks for high-production ripping operations. The rear lift/loading table enables uninterrupted automatic loading according to the cutting program.

Advantages

• AXO 400 T: increases throughput by using a rear lifting table for continuous automatic loading of panel stacks to match the cutting sequence.
• AXO 500 T HD: designed for very high production with greater blade projection, higher saw carriage and pusher speeds, and the ability to handle panel stacks up to 1300 mm high on the table.
• For heavy continuous use AXO 500 T HD can be equipped with prismatic guides with automatic forced lubrication, saw carriage feed up to 150 m/min and pusher speed up to 70 m/min.

Technical data
— (header) | AXO 400 T | AXO 500 T HD
Ripping capacity | 3200 / 3800 / 4500 mm | 3200 / 3800 / 4500 mm
Blade projection | 110 mm | 128 mm
Saw carriage feed speed | 0 ÷ 135 m/min | 0 ÷ 150 m/min
Max. pusher return speed | 0 ÷ 70 m/min | 0 ÷ 70 m/min
Main motor power at 50 Hz (S6-40%) | 9 kW (12 Hp) | 15 kW (20 Hp)
Scoring motor power at 50 Hz (S6-40%) | 1.8 kW (2.5 Hp) | 1.8 kW (2.5 Hp)
Max. dimensions of panels on rear loading table | T/32: 3200 x 1850 mm; T/38: 3800 x 1850 mm; T/45: 4500 x 2200 mm | T HD/32: 3200 x 1850 mm (2440 opt); T HD/38: 3800 x 1850 mm (2440 opt); T HD/45: 4500 x 2440 mm
Standard lift table capacity h = 600 mm | 4000 Kg | 6500 Kg

Notes
The AXO 500 T HD is emphasized for its higher blade projection and very high production capability; some descriptive text reports a blade projection of 130 mm for the AXO 500 T HD while the technical table specifies 128 mm. These machines are intended for very high production environments and to automate panel-stack feeding via a rear lifting/loading table.

Specifications

• Series: AXO
• Models: AXO 400 T and AXO 500 T HD
• Ripping capacities available: 3200 / 3800 / 4500 mm
• Blade projection: AXO 400 T = 110 mm; AXO 500 T HD = 128 mm (sometimes reported as 130 mm)
• Saw carriage feed speed: AXO 400 T = 0 ÷ 135 m/min; AXO 500 T HD = 0 ÷ 150 m/min
• Max pusher return speed: 0 ÷ 70 m/min
• Main motor power (50 Hz, S6-40%): AXO 400 T = 9 kW (12 Hp); AXO 500 T HD = 15 kW (20 Hp)
• Scoring motor power: 1.8 kW (2.5 Hp) for both models
• Max panel dimensions on rear loading table: multiple configurations (see technical data)
• Standard lift table capacity (h = 600 mm): AXO 400 T = 4000 Kg; AXO 500 T HD = 6500 Kg
• Optional: prismatic guides with automatic forced lubrication recommended for heavy continuous use
