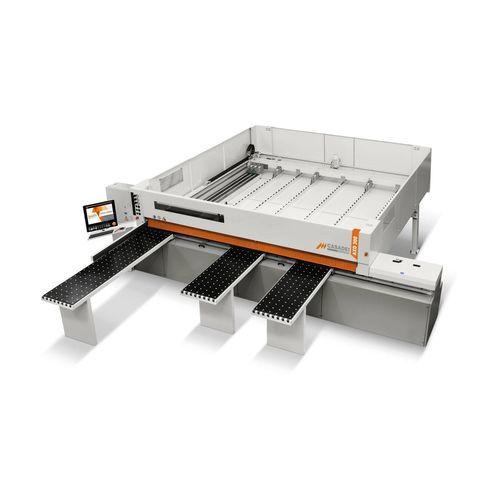

Panel saw AXO 300

horizontalfor panelsautomatic

Overview
The AXO 300 automatic horizontal beam saw is designed for precision longitudinal cutting of panel material. It supports single-panel and stacked-panel cutting to cover both small "Just In Time" batches and high-volume production.

Advantages

• Flexibility: maximum flexibility for small JIT lots and high-throughput production by cutting several stacked panels simultaneously.
• Options: modular accessories available, including packages for cutting non-ferrous materials.
• Production adaptability: configurable for workflows requiring varying lot sizes and production rates.
• Stability: deflection-free, high-rigidity steel machine frame with tubular structure to maintain dimensional precision.

Technical data
AXO 300
Ripping capacity: 3200/3800/4500 mm
Pusher stroke: 2100/3200/3200 mm
Blade projection: 90 mm
Saw carriage feed speed: 6 ÷ 60 m/min (std); 0 ÷ 135 m/min (opt); 0 ÷ 150 m/min (opt)
Max. pusher return speed: 60 m/min (std); 70 m/min (opt); 120 m/min (opt)
Main motor power at 50 Hz (S6): 9 kW (12 Hp)
Scoring motor power at 50 Hz (S6): 1.8 kW (2.5 Hp)

Technical specifications

• Ripping capacity: 3200/3800/4500 mm
• Pusher stroke: 2100/3200/3200 mm
• Blade projection: 90 mm
• Saw carriage feed speed: 6 ÷ 60 m/min (std); 0 ÷ 135 m/min (opt); 0 ÷ 150 m/min (opt)
• Max. pusher return speed: 60 m/min (std); 70 m/min (opt); 120 m/min (opt)
• Main motor power at 50 Hz (S6): 9 kW (12 Hp)
• Scoring motor power at 50 Hz (S6): 1.8 kW (2.5 Hp)
