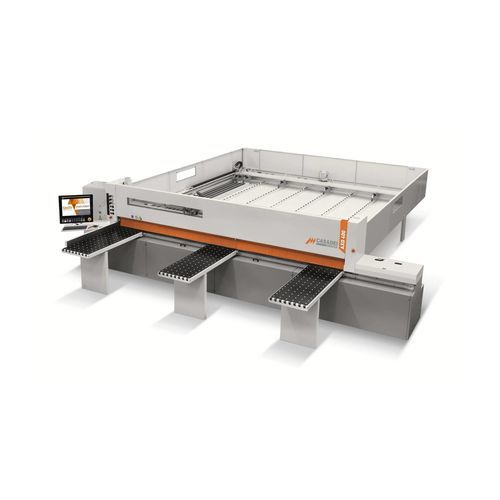

Panel saw AXO series

circularsliding tablehorizontal

Description
AXO 400 and AXO 500 HD are automatic horizontal beam saws designed for high-production panel cutting and accurate cross-cutting. AXO 400 offers a 110 mm blade projection and versatile feed configurations; AXO 500 HD provides increased blade projection and higher main motor power for heavy-duty continuous use.

Advantages

• Engineered for high production rates with consistent dimensional precision
• AXO 400: 110 mm blade projection, main motor 9 kW (S6); AXO 500 HD: 128 mm blade projection, main motor 15 kW (S6)
• Wide range of saw carriage feed speeds and pusher speeds to match production requirements
• Optional prismatic guides with automatic forced lubrication for heavy continuous operation
• High-speed configurations available (saw carriage up to 150–180 m/min; pusher up to 90–120 m/min) for intensive use

Technical data (table)

• Series: AXO series (AXO 400 and AXO 500 HD)
• Ripping capacity: 3200/3800/4500 mm | 3200/3800/4500 mm
• Pusher stroke: AXO 400: 2100/3200/3200 mm | AXO 500 HD: 3200/3800/4300 mm
• Blade projection: AXO 400: 110 mm | AXO 500 HD: 128 mm
• Saw carriage feed speed: AXO 400: 6 ÷ 60 m/min (std); 0 ÷ 135 m/min (opt); 0 ÷ 150 m/min (opt) | AXO 500 HD: 0 ÷ 180 m/min (std)
• Max. pusher return speed: AXO 400: 60 m/min (std); 70 m/min (opt); 120 m/min (opt) | AXO 500 HD: 70 m/min (std)
• Main motor power at 50 Hz (S6): AXO 400: 9 kW (12 Hp) | AXO 500 HD: 15 kW (20 Hp)
• Scoring motor power at 50 Hz (S6): 1.8 kW (2.5 Hp) | 1.8 kW (2.5 Hp)

Characteristics / technical specifications

• Optional prismatic guides for the saw carriage with automatic forced lubrication (recommended for heavy continuous use)
• Optional increased saw carriage feed speed up to 150 m/min and pusher speed up to 90 m/min for heavy-duty configurations (model dependent)
• Configuration flexibility for ripping capacity and pusher stroke to align with production layout
