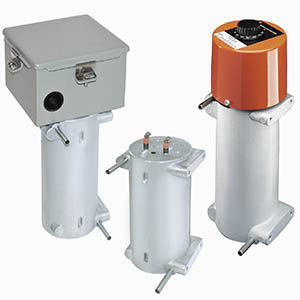

Water heater CAST-X 1000

circulationstainless steelhigh-pressure

SPECIFICATIONS: Power: 700 W Total to 3 kW Total Voltage Range: 120 - 480 V Max Line Current: 15 A Tubing: .313” OD (5/16") (7.9 mm) .020” Wall (.5 mm) Overall Process Tube Length: 137” (3480 mm) 316L Stainless Steel (standard) Inconel (optional upgrade) Passivated or Electro-Polished (optional upgrades) Max Pressure: 2100 psi (144 bar) Enclosures: No Enclosure NEMA 1 (general-purpose/dust-proof) NEMA 4 (moisture-resistant) Max Working Temperatures: No Enclosure: 662°F (350°C) NEMA 1 (dust-proof/general-purpose) no thermostat: 608°F (320°C). NEMA 1 (dust-proof/general-purpose) with thermostat: 250°F (121°C) NEMA 4 (moisture-resistant) no thermostat 482°F (250°C). NEMA 4 (moisture-resistant): with thermostat: 250°F (121°C) Published temperatures are for housing at 12 o’clock position; Higher temps may be possible at 6 o’clock position. See factory for details. APPLICATIONS: Engine & Compressor Pre-Heating Solvent Heating for Wet Bench Applications Hydrogen Peroxide & IPA Vaporization Commercial Foodservice Machines Compressor Condensate Evaporation Steam Generation FEATURES & BENEFITS: Fluid Path has No Contact with Heating Elements Heated Media is Isolated in Seamless 316 Stainless Steel Tubes Allows for Safe Heating of Explosive Gases & Flammable Liquids Excellent Performance in High-Pressure Applications Suitable for Use with Sterile and Zero Contaminant Processes Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.) Small Size Enables Easy Integration into Larger Machines Self-Draining Flow-Tubes, and Long-Life Heating Elements
