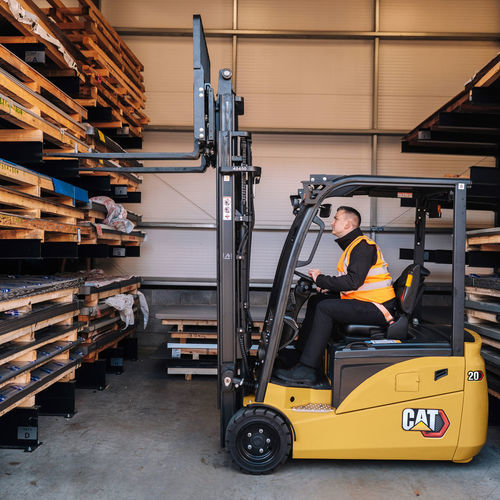

Electric forklift EP16-20QT

ride-onindooroutdoor

Overview
Electric counterbalance forklifts EP16-20QT deliver straightforward, versatile material handling for light to medium duty indoor and outdoor use. Designed for dependable operation with low operating costs, these models offer practical options for varied applications. Just as you would expect from any Cat lift truck.

Lower cost of ownership

• Li‑ion batteries provide long service life, high energy efficiency and extended runtime without battery swaps, watering or similar maintenance.
• Simple servicing design reduces downtime and service costs.
• Durable construction minimises repair needs and supports reliable operation.
• Effective sealing protects critical components from water ingress.
• Front and rear super‑elastic tyres extend service life and reduce vibration‑related wear on components.
• Non‑marking super‑elastic tyre option reduces floor cleaning frequency.
• Cabin‑ready overhead guard enables quick, low‑cost cabin installation.
• Cold‑store modification (down to −18°C) preserves performance in very low temperatures.

Productivity

• Li‑ion technology supports fast onboard and opportunity charging so battery exchanges are unnecessary and trucks are available when needed.
• Super‑elastic tyres maintain consistent performance on uneven floors.
• Integrated and external charger options: integrated for convenience and space saving (plug‑in), external for faster charging and high‑demand use.
• Simplex and triplex mast options: simplex for cost‑effective single‑stage lifting; triplex for greater lift heights and versatile rack access.
• Standard hook‑on side shift simplifies and speeds pallet positioning.
• Optional fork positioner with side shift increases adaptability for varied loads.
• Optional higher travel and lift speed improves throughput for intensive handling tasks.

Safety

• Familiar, intuitive controls including conventional hydraulic levers enable easy operation with minimal training.
• Optional fingertip levers for hydraulics and forward/reverse deliver precise control with low effort.
• Seat suspension reduces vibration and improves operator comfort.
• Optional luxury seat enhances ergonomics and reduces operator fatigue.
• Spacious operator compartment allows freedom of movement and clear visibility.
• Super‑elastic tyres further reduce vibration exposure for the operator.
• Glass roof option (or PVC roof on three‑wheel models) protects against falling objects and enhances upward visibility while keeping the driver dry.
• Optional front window with wiper maintains clear view in rain or dust.
• Complete weatherproof cabin option available for wet or cold environments.
• Road light kit (front/rear work lights, indicators, hazard lights) improves on‑site and road visibility.
• Rear blue spot projects onto the floor to warn pedestrians of a reversing truck.
• Strobe light option increases visibility to pedestrians and other operators in low light or outdoor conditions.
• Reverse warning buzzer alerts nearby workers to potential hazards.
• Parabolic rear‑view mirror enhances all‑round vision and reduces blind spots during manoeuvring.
• Li‑ion battery chemistry eliminates the risk of hazardous gas or acid leaks.

Specifications (table)
Model | Capacity (kg) | Load Centre (mm) | Engine
EP16QT | 1600 | 500 | Electric
EP20QT | 2000 | 500 | Electric

Characteristics / technical specifications

• Commercial name: EP16-20QT
• Series / Line: EQ Line (Electric counterbalance forklifts)
• Models in table: EP16QT (1,600 kg), EP20QT (2,000 kg)
• Rated capacity: 1,600 kg and 2,000 kg (load centre 500 mm)
• Powertrain: Electric
• Battery options: Lithium‑ion (Li‑ion) available; integrated and external charger options
• Tyres: Front and rear super‑elastic tyres; non‑marking super‑elastic tyre option available
• Mast options: Simplex and Triplex available
• Hydraulics: Standard hook‑on side shift; optional fork positioner including side shift
• Operator comfort options: Seat suspension, luxury seat option, spacious operator compartment, glass roof or PVC roof (three‑wheel models)
• Weather & environment options: Cabin‑ready overhead guard; complete weatherproof cabin; cold‑store modification to −18°C
• Safety & visibility: Road light kit (front/rear work lights, indicators, hazard lights), rear blue spot, strobe light, reverse warning buzzer, parabolic rear‑view mirror
• Application: Designed for light to medium duty applications, indoor and outdoor use
