Electric pallet truck NPP16Q2L

lithium battery-poweredbattery-powered24 V

Overview

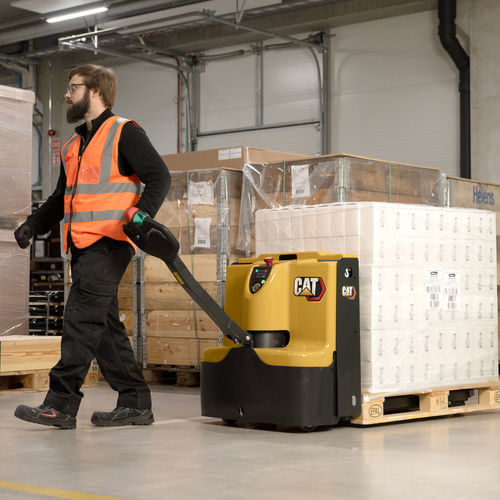

This pedestrian power pallet truck reduces much of the effort and expense of moving goods. Robustly built, easy to manoeuvre and rated for loads up to 1.6 tonnes, it supports efficient material handling and long service life. NPP16Q2L pedestrian power pallet truck: a cost-saving solution for everyday operations.

Lower cost of ownership

• Durable steel chassis construction ensures reliable operation over an extended lifetime with minimal servicing and repair needs.
• AC drive motor design provides long service life and low maintenance requirements.
• Li‑ion battery options deliver long lifespan, high efficiency and extended runtime without water top‑ups or regular electrolyte maintenance.
• Fast plug‑in diagnostics and external programming port reduce downtime and simplify troubleshooting.
• Easy service access including quick‑release cover shortens maintenance time and lowers service costs.
• PIN code access and keyless start with RFID support prevent unauthorised use and streamline operator management.

Productivity

• High‑performance drive motor and drivetrain provide strong gradeability and the ability to overcome obstacles and bumps.
• Compact, stable layout with a small turning radius enables fast, safe operation and excellent manoeuvrability in confined spaces.
• Optional automatic cornering speed reduction helps maintain stability during turns.
• 24V/100Ah high‑capacity battery option offers extended runtime between charges for intensive shift work.
• Li‑ion battery technology supports opportunity charging for continuous operation without battery swaps.

Safety

• Ergonomic spring‑assisted long tiller arm provides comfortable grip and low‑effort control to reduce operator fatigue.
• Multifunction tiller head positions controls within easy reach for one‑handed operation.
• Turtle/creep speed button enables safe manoeuvring with the tiller in vertical position in narrow aisles.
• Li‑ion battery chemistry eliminates risk of hazardous gas or acid leaks associated with lead‑acid batteries.
• Optional load backrest improves pallet and goods stability during transport.

Technical specifications

• Model: NPP16Q2L
• Capacity: 1600 kg (1.6 tonnes)
• Load centre: 600 mm
• Engine / Drive: Electric (AC drive)
