Automatic filler-capper-labeler

enclosurefor bottlesfor viscous products

Overview
CDA offers a complete automatic 3-in-1 line integrating filling, capping and labelling for a wide range of liquid and semi-viscous products. The line is designed for enclosed operation, easy integration and adaptable configuration to meet specific product, format and throughput requirements.

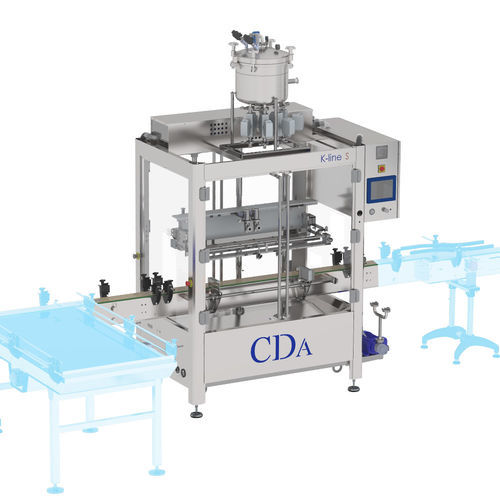

K-Line S (filler)
The K-Line S is an enclosed linear filler providing simple adjustment and high cleanability. Dosing options include piston volumetric dosing or flow metering, with the possibility of a pressurised buffer tank. Depending on configuration and product, filling capacity can reach up to 3,000 L/h with an accuracy of ±0.5% of the dosed volume.

VS2000 (capping machine)
The VS2000 is an enclosed capping machine that automatically feeds and applies a wide range of closures. Capping heads are driven by electric screwdrivers, suitable for spray caps, flat caps, ribbed caps and other common closure types, ensuring controlled torque and consistent application.

Ninon Mix (labeller)
The Ninon Mix labeller is configurable and can be supplied with a protective casing on request. It can apply up to 5 self-adhesive labels and adapts to many container geometries including cylindrical, conical, oval and rectangular. Nominal capacity reaches up to 35 products per minute depending on format and label layout.

Advantages

• Up to 35 products/minute (depending on configuration)
• Up to 5 labelling stations for multi-panel or multi-label applications
• Complete enclosed line suitable for sensitive or regulated products

Complementary solutions

• Infeed/outfeed feeding tables and accumulators
• Marking and coding systems (laser, inkjet)
• Conveyors: linear, curved or U-shaped layouts
• Custom peripherals and integration services to match workshop constraints

Industrial sectors concerned

• Cosmetics
• Food & beverage
• Paints and coatings
• Chemicals
• Parapharmacy and OTC products
• Natural products and supplements
• Automotive liquids
• Animal care products

Container shapes

• Cylindrical
• Conical / tapered
• Oval
• Rectangular
• Square
• Large slightly conical pots

Viscosity

• Fluid
• Thick
• Dense / paste-like

Technical specifications

• Bottle size range: from 50 ml to 20 L
• Filling accuracy: ±0.5% of dosed volume
• K-Line S: piston volumetric dosing or flow metering; optional pressurised buffer tank
• K-Line S: up to 3,000 L/h (product- and configuration-dependent)
• VS2000: enclosed capping unit with electric screwdriver-driven heads; compatible with spray, flat, ribbed and other closures
• Ninon Mix: up to 5 self-adhesive labels; adapts to multiple shapes; up to 35 products/minute (depending on format)
• Line layout: linear, curved or U-shaped conveyor arrangement to suit workshop constraints
