Packaging line for the food and beverage industry

for the pharmaceutical industryfor cylindrical productsfor bottles

Overview

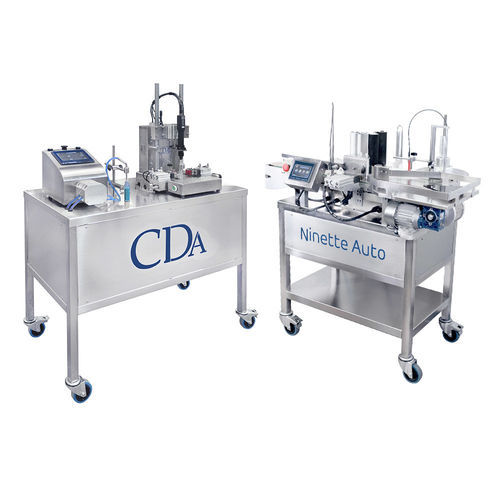

The complete semi-automatic line combines filling, screwing and labelling for small productions up to 15 products/minute (900 products/hour). Suitable for cylindrical containers from 5 ml to 250 ml and adapted to industries such as pharmaceutical, cosmetics, food and e-liquids.

Filling - K-One
The K-One is a peristaltic pump ensuring hygienic and simple dosing: the product contacts only changeable hoses. Filling capacity up to 15 products/minute. Filling accuracy: +/- 1% (depending on product and viscosity). Applicable sectors: pharmaceutical, cosmetic, food, e-liquids.

Screwing - VS100
The VS100 is a semi-automatic screwing unit with bi-manual control. Torque is adjustable at the head and the screwing head is custom-made to match caps. Fast changeover and simple operation make it suitable for a variety of containers and closures.

Labelling - Ninette auto mini
The Ninette auto mini is the labeller designed for small cylindrical products. With a swivel and interchangeable platen it can label bottles with a diameter of 20 mm. Operation is via an intuitive touch screen. Labelling speed up to 15 products/minute. Capable of applying up to two labels (main label + back label).

Complementary solutions

• Optional integrations: inkjet or industrial marking systems for batch codes, expiry dates or barcodes.

Advantages

• Compact semi-automatic line for small production runs
• Filling accuracy ±1%
• Modular configuration: filling, screwing and labelling units

Characteristics

• Line output: up to 15 products/minute (≈900 products/hour)
• Container types: cylindrical bottles/vials
• Container volume range: 5 ml – 250 ml
• Filling unit: K-One peristaltic pump; hygienic dosing with changeable hoses
• Filling accuracy: ±1% (typical)
• Screwing unit: VS100 semi-automatic; bi-manual control; adjustable torque; custom screwing head
• Labelling unit: Ninette auto mini; swivel/interchangeable platen; for bottles Ø 20 mm; touch screen; up to 15 ppm; up to 2 labels
• Optional accessories: inkjet/HSA marking for expiry, batch or barcode
