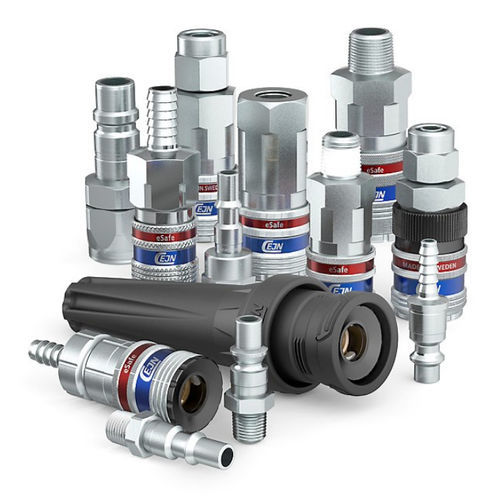

Pneumatic fitting 291 Series eSafe
quickstraightzinc-plated steel

pneumatic fitting
pneumatic fitting
Add to favorites
Compare this product


Characteristics

Applications
pneumatic
Attachment
quick
Configuration
straight
Material
zinc-plated steel
Other characteristics
security, high-flow
Diameter

5.5 mm (0.217 in)

Operating pressure

Max.: 12 bar (174.05 psi)

Description

.Vented safety function .High flow capacity .Strong and durable Series 291 eSafe couplings offer high flow and require only a low connection force, which ensures a safe working environment. eSafe is a one hand operated safety coupling that vents before disconnection eliminating the risk of hose whip. Male threads on the couplings and nipples feature pre-applied thread sealant. A fully automatic operation ensures quick and easy handling. eSafe complies with ISO Standard 4414. Nominal flow diameter: 5.5 mm (7/32"") Air flow: 1090 l/min (38.5 CFM) Max. working pressure: 12 bar (174 PSI) Min. burst pressure: 48 bar (696 PSI) Connection force: 87 N Temperature range: -20°C — +100°C (-4°F — +212°F) Material coupling: Zinc-plated steel/brass Material nipple: Hardened zinc-plated steel Interchangeable with: Parker Rectus 18, Prevost CSI06, Stäubli RSI06 Standards: ISO 6150 C, 5.5 mm Markets: France, Switzerland Flow capacity is measured at 6 bar (87 PSI) inlet pressure, and pressure drop at 0.5 bar (7 PSI).
