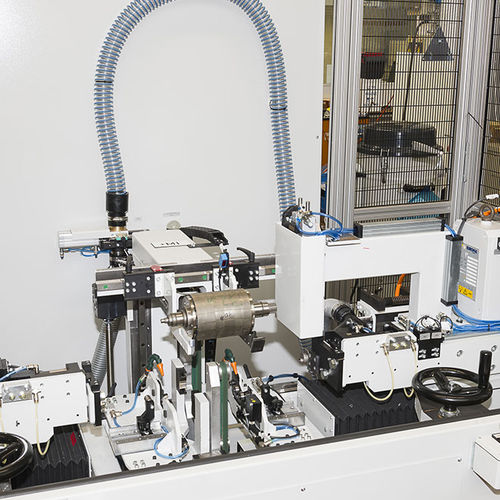

Horizontal balancing machine ZBTOK20/2UOdynamic
Add to favorites
Compare this product
Characteristics
- Orientation
- horizontal
- Type
- dynamic
Description
Balancing machine by axial drilling correction unit
One station balancing machine, measuring the unbalance on two planes, belt drive, equipped by two opposite axial drilling units for correction on both side and with controlled axes.
Features:
The machine can be equipped with:
Side touch unit for the highest accuracy in the drilling depth.
Manual adjustment of the drilling unit on the required correction holes radial position.
Electronic indexing system to avoid areas of the piece in which the correction is not allowed.
Approx overall dimensions:
Width: 2600 mm
Depth: 1348 mm
Height: 2045 mm
