vertical balancing machine / dynamic / for rotors / for pumps
VUBK100-TFM

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

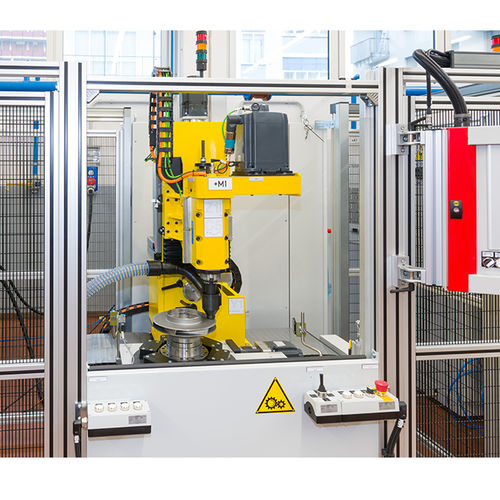

vertical balancing machine vertical balancing machine - VUBK100-TFM
{{requestButtons}}

Characteristics

  • Orientation:

    vertical

  • Type:

    dynamic

  • Applications:

    for rotors, for pumps

Description

For pump rotors

Field of application
Balancing machine for pump rotors, automatic static unbalance correction obtained by a milling or drilling unit.

Features
– Manual loading and unloading. Prepared to communicate with an external loader.
– Automatic unbalance correction obtained by a correction unit able to machine milling arcs or to drill holes.
– The part under milling process rotates by the use of a rotary table equipped with six pneumatic clamps.
– The milling unit may operate inside an angle range of ± 45° so allowing to machine even inclined surfaces.

Advantages
Flexibility in terms of use

Approx overall dimensions:
Width: 2600 mm
Depth: 1350 mm
Height: 2000 mm
