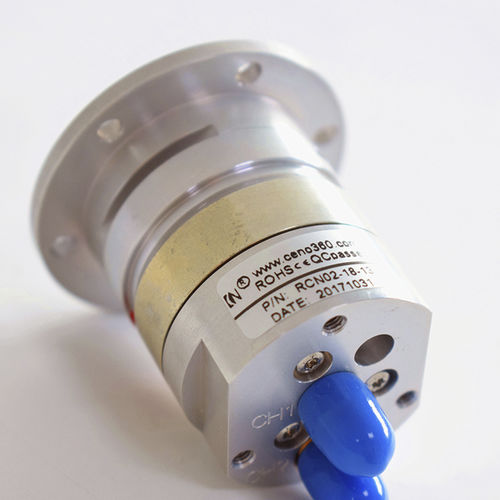

Aluminum alloy slip ring RCN02-18-13compactwith gold contactshigh-frequency
Add to favorites
Compare this product
Characteristics
- Material
- aluminum alloy
- Other characteristics
- compact, with gold contacts, high-frequency, SMA, with RF coaxial connector, RF
- Rotational speed
60 rpm
(377 rad.min-1)- Number of channels
2 unit
Description
RCN02-18-13 radio frequency slip ring has 2channel with SMA female connector. It is used for transmitting high frequency signal from rotor stator side to stator rotor side. Inside base contact material is copper and finished material is gold. It has compact structure, strong anti interference ability, easy to be integrated in other equipment. life up to 10million rotations at least with 1500W peak power.According to exact application, protection grade can be designed.
