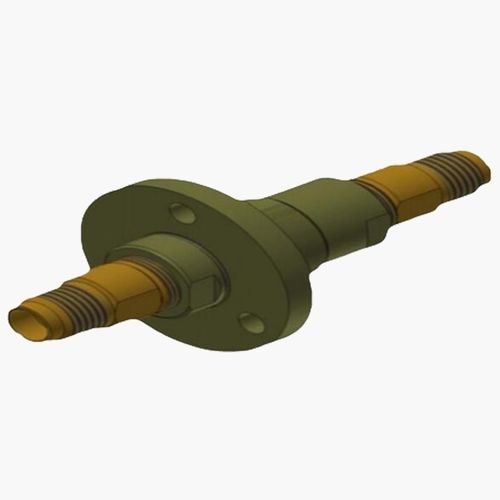

RF slip ring RCN0167A

hybridstainless steelcopper alloy

CENO uses import high elastic wear-resisting material in the internal key contact point of the RF rotary joint and do special plating in the surface for it. It is a connector device to transmit high frequency signal from the static to rotating part.Up to 50 GHz transmission frequency, channel number is as high as 5 channels. Can be integrated with other electrical slip ring, hybrid transmission of high frequency signals, current and other types. Life, min. 0.2 x 106 revolutions Torque (room / min. temperature), max. 0.5 Ncm / - @ start-up 0.5 Ncm / - @ rotation Interface loads, max. ±0.5 N in axial direction ±0.5 N in radial direction Case material copper alloy and stainless steel Case surface finish partially gold plated Weight, approx. 0.05 kg Marking adhesive label Operation Ambient temperature range -40 to +60°C Relative humidity, max. 95% (non-condensing) Storage Ambient temperature range -55 to +80°C Relative humidity, max. 95% (non-condensing)
