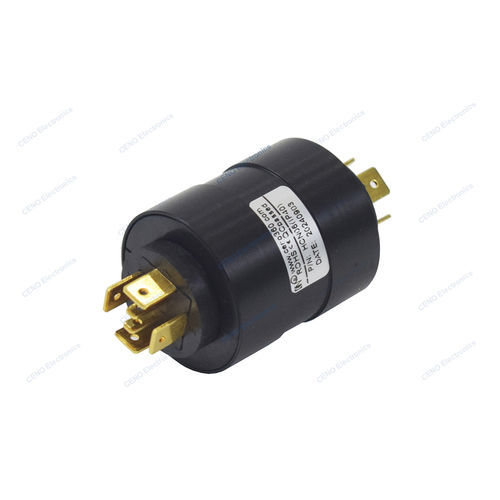

Electric slip ring HCN06

for wind turbineindustrialmetal

HCN06 is CENO's Pin connection Slip Ring with 6 cores designed for industrial manufacturing. It's called direct-connected slip ring also, It features compact structure and has the characteristics of convenient connection and high current carrying capacity. The pin connection slip ring is made of metal plating and coating treatment, the brush are made of precious metal alloy wires. Quality fully meets the EU environmental protection requirement, for more information please contact us. Dielectric strength ≥500VAC@50Hz Isolation resistance ≥100MΩ@500VDC Contact material Gold to gold Housing material Engineering plastics Working temperature -40°C~+80°C Working humidity 60 %RH Lead wire length Rotor / Stator: Gold plated pin (8mm)
