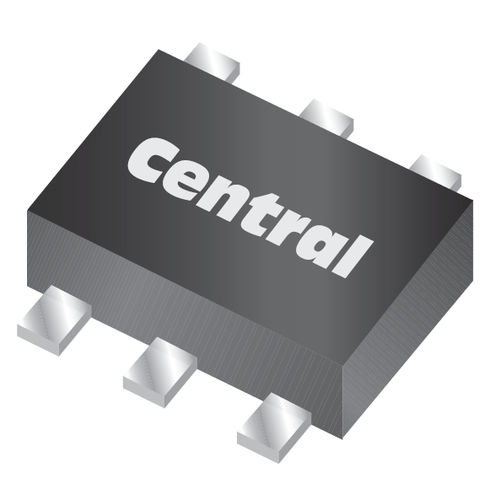

Schottky diode CMLSH05 series

SMDrectifier

The CENTRAL SEMICONDUCTOR CMLSH05-10DA consists of two (2) individual electrically isolated 100 Volt Schottky diodes with opposing polarity and packaged in the space saving SOT-563 surface mount case. This device has been designed for size constrained applications requiring high voltage Schottky diodes. MARKING CODE: 10C The CENTRAL SEMICONDUCTOR CMLSH05-4DO consists of two (2) individual electrically isolated 40 Volt Schottky diodes with opposing polarity and packaged in a space saving SOT-563 surface mount case. This device has been designed for applications requiring a low forward voltage drop. MARKING CODE: CO4 The CENTRAL SEMICONDUCTOR CMLSH05-4 is a 40 Volt Schottky diode packaged in a space saving SOT-563 surface mount case. This device has been designed for applications requiring a low forward voltage drop. MARKING CODE: C54 APPLICATIONS: • LED drive circuits • DC-DC converter output rectification • Power management • Reverse polarity protection FEATURES: • Smallest available 100V dual, isolated Schottky diode • High reverse voltage • Low forward voltage • Low reverse leakage current
