PN junction diode rectifier bridge CBRHD series
SMDbridgerectifier

PN junction diode rectifier bridge
PN junction diode rectifier bridge
Add to favorites
Compare this product


Characteristics

Technology
PN junction
Mounting
SMD, bridge
Function
rectifier
Technical characteristics
silicon
Reverse voltage

Min.: 100 V

Max.: 1,000 V

Description

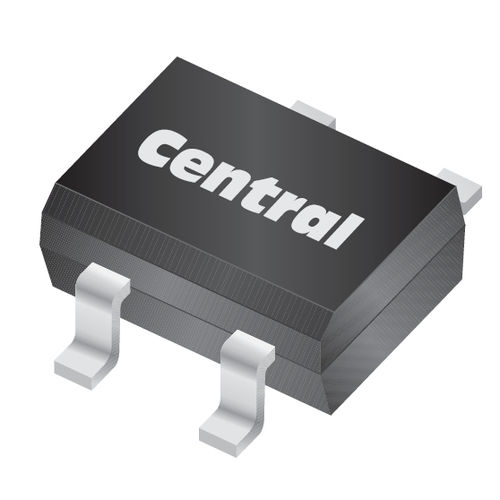

The CENTRAL SEMICONDUCTOR CBRHD-01 is a silicon full wave bridge rectifier mounted in a durable epoxy surface mount molded case, utilizing glass passivated chips. MARKING CODE: CBD1 FEATURES: • Efficient use of board space: requires only 42mm2 of board space vs. 120mm2 of board space needed for industry standard 1.0 Amp surface mount bridge rectifier. • 50% higher density (Amps/mm2) than the industry standard 1.0 Amp surface mount bridge rectifier. • Glass passivated chips for high reliability
