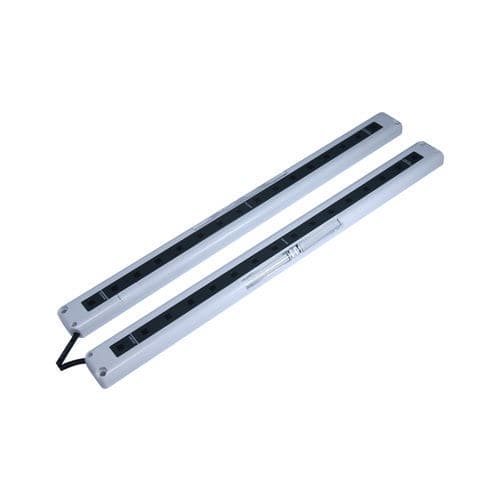

Safety light curtain CSP20-T0316DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Other characteristics
- cascade
- Operating range
Max.: 3 m
(9'10" )Min.: 0.1 m
(0'03" )
Description
Product name
Overview
Technical specifications
Mechanical / Electrical parameters
Accessories & packaging
Features / Specifications (summary)
- CSP20-T0316DP2-A (CSP series safety light curtain)
Overview
- Type: lightweight safety light curtain
- Detection range: 0–2 m
- Operating principle: through-beam
- Output: PNP NC
- Supply voltage: DC 24 V
- Ingress protection: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: wired sync
- Beam pitch: 20 mm
- Number of beams: 16
- Protected height: 300 mm
- Included accessories: manual, certificate, mounting bracket, mounting screws
Mechanical / Electrical parameters
- Output type: PNP NC
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection: relay/cascadable type
- Signal type: discrete (switch) output
- Operating mode: Dark ON
- Mounting: top/bottom mounting
Accessories & packaging
- Supplied: manual, certificate, mounting bracket, mounting screws
Features / Specifications (summary)
- Series: CSP series
- Model: CSP20-T0316DP2-A
- Detection range: 0–2 m
- Number of beams: 16
- Beam pitch: 20 mm
- Protected height: 300 mm
- Supply: DC 24 V
- Output: PNP NC
- Ingress protection: IP65
