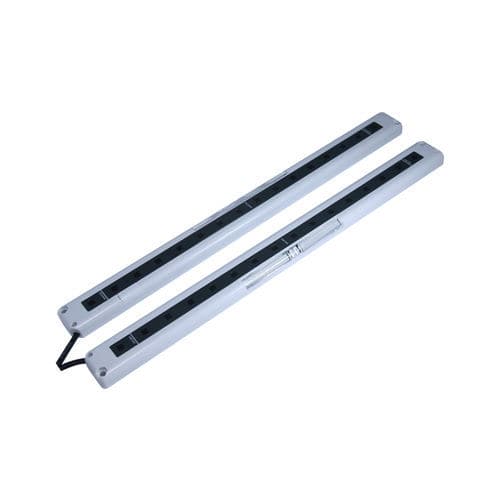

Safety light curtain CSP20-T0312DP2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Max.: 3 m
(9'10" )Min.: 0.1 m
(0'03" )
Description
Product
Technical specifications (summary)
Mechanical / Electrical parameters
Control output and outline
Characteristics / technical specifications
- Product name: CSP20-T0312DP2-A
- Series: CSP series light curtains
- Product type: Lightweight
- Detection range: 0–2 m
- Detection principle: Through-beam
- Output type: PNP NC
- Supply voltage: DC 24 V
- Protection rating: IP65
Technical specifications (summary)
- Cable length: 0.5 m
- Synchronization method: Line synchronization
- Beam pitch: 20 mm
- Number of beams: 12
- Protective height: 220 mm
- Accessories: manual, certificate, mounting brackets, mounting screws
Mechanical / Electrical parameters
- Output type: PNP NC
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: Relay-type connection
- Signal type: Discrete (switch) signal
- Operating mode: Dark ON
- Mounting: Top/bottom mounting
Control output and outline
- Control output diagram: covers this product series (displayed on product page)
- Outline drawing: covers this product series (displayed on product page)
Characteristics / technical specifications
- Model: CSP20-T0312DP2-A
- Series: CSP series light curtains
- Product type: Lightweight
- Detection range: 0–2 m
- Detection principle: Through-beam
- Number of beams: 12
- Beam pitch: 20 mm
- Protective height: 220 mm
- Cable length: 0.5 m
- Synchronization method: Line synchronization
- Output type: PNP NC
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: Relay-type connection
- Signal type: Discrete (switch) signal
- Operating mode: Dark ON
- Mounting: Top/bottom mounting
- Accessories: manual, certificate, mounting brackets, mounting screws
