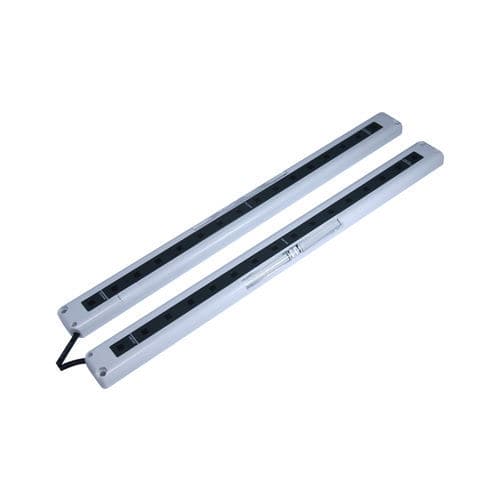

Safety light curtain CSP20-T0316DN2-A

multibeamthrough-beamIP65

ProductName: CSP20-T0316DN2-ASeries: CSP series light curtainOverview / SummaryProduct type: lightweightDetection range: 0–2 mDetection principle: through-beamOutput: NPN NCSupply voltage: DC 24VProtection rating: IP65Technical specificationsCable length: 0.5 mSynchronization method: cable synchronizationBeam pitch: 20 mmNumber of beams: 16Protection height: 300 mmAccessories included: manual, certificate of conformity, mounting brackets, installation screwsMechanical / Electrical parametersOutput: NPN NCSupply voltage: DC 24VProtection rating: IP65Connection type: relay typeSignal type: switchingOperating mode: Dark ONMounting: top/bottom installationCharacteristics / technical specificationsProduct category: lightweightDetection range: 0–2 mPrinciple: through-beamNumber of beams: 16Beam pitch: 20 mmProtection height: 300 mmOutput: NPN NC (switching signal)Supply voltage: DC 24VIP rating: IP65Cable length: 0.5 mSynchronization: cable synchronizationOperating mode: Dark ONInstallation: top/bottomAccessories: manual, certificate, mounting brackets, screws
