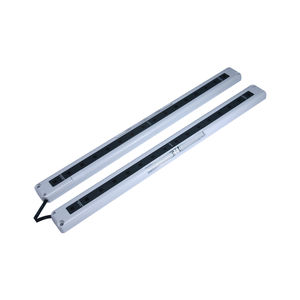

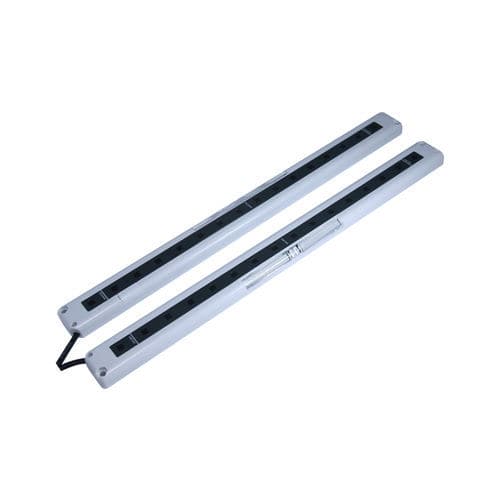

Type 2 safety light curtain CSP20-T0312DN2-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 2 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
ProductCSP20-T0312DN2-A is a CSP-series safety light curtain for presence detection and access protection in industrial automation.Key featuresType: lightweightDetection distance: 0–2 mDetection principle: through-beam (opposed)Output: NPN NCSupply voltage: DC 24 VProtection rating: IP65Technical specificationsModel: CSP20-T0312DN2-ASeries: CSP series light curtainsNumber of beams: 12Beam pitch: 20 mmProtection height: 220 mmCable length: 0.5 mSynchronization: wired syncAccessories: manual, certificate, mounting brackets, mounting screwsMechanical / electrical parametersOutput type: NPN NCSupply voltage: DC 24 VProtection class: IP65Connection: relay-typeSignal type: discrete (switch) signalOperating mode: Dark ONMounting: top-bottom installationRecommended applicationsElectronics assembly (3C industry)Automated parking systemsLogistics and warehouse automation
Catalogs
No catalogs are available for this product.
See all of CHANKO SENSOR‘s catalogsOther CHANKO SENSOR products
CSP Series
