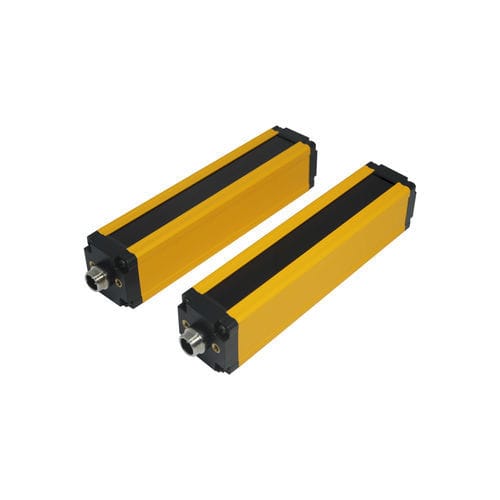

Measuring light curtain CSMF60-T0348DL-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- measuring
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Other characteristics
- compact
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product name
Main parameters
Technical specifications
Mechanical / electrical parameters
Features / Technical data
- CSM series light curtain, model CSMF60-T0348DL-A
Main parameters
- Product type: slim measurement type
- Detection range: 0.1–2 m
- Detection principle: through-beam (emitter-receiver)
- Output: 4–20 mA current
- Supply voltage: DC 24 V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: wired synchronization
- Beam pitch: 60 mm
- Number of beams: 48
- Protective height: 2820 mm
- Included accessories: manual, certificate, mounting brackets, mounting screws
Mechanical / electrical parameters
- Output: 4–20 mA current
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: relay-type
- Signal type: analog
- Mounting: top and bottom mounting
Features / Technical data
- Product type: slim measurement type
- Detection range: 0.1–2 m
- Detection principle: through-beam (emitter-receiver)
- Cable length: 0.5 m
- Synchronization: wired synchronization
- Beam pitch: 60 mm
- Number of beams: 48
- Protective height: 2820 mm
- Output: 4–20 mA current
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: relay-type
- Signal type: analog
- Mounting: top and bottom mounting
- Included accessories: manual, certificate, mounting brackets, mounting screws
