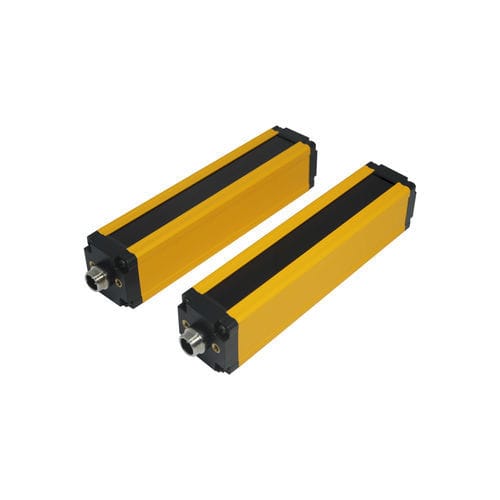

Measuring light curtain CSMF60-T0346DL-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- measuring
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Other characteristics
- compact
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Product
Main features
Technical specifications
Mechanical / electrical parameters
Recommended applications
Included accessories
- Model: CSMF60-T0346DL-A
- Series: CSM series light curtain
- Type: Slim measuring type
Main features
- Detection range: 0.1–2 m
- Optical principle: through-beam
- Output: 4–20 mA analog
- Power supply: DC 24 V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: wired synchronization
- Beam pitch: 60 mm
- Number of beams: 46
- Protection height: 2700 mm
Mechanical / electrical parameters
- Connection: relay (intermediate) type
- Signal type: analog
- Mounting: top and bottom installation
Recommended applications
- 3C electronics manufacturing
- Automated parking systems
- Logistics and warehousing
Included accessories
- User manual
- Certificate
- Mounting brackets and installation screws
