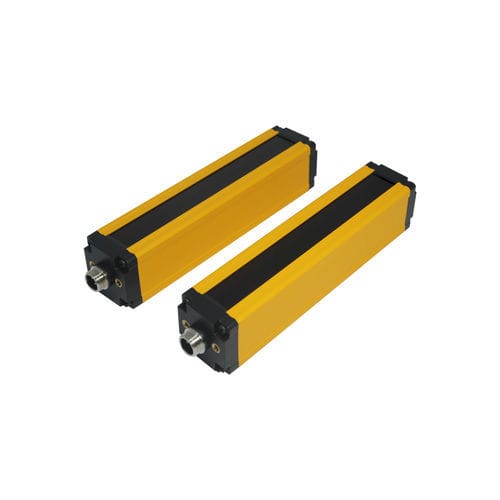

Measuring light curtain CSMG60-T0346DL-Amultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- measuring
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.1 m
(0'03" )Max.: 3 m
(9'10" )
Description
Series
Product overview
Technical specifications
Mechanical / electrical parameters
Recommended applications
Features / technical highlights
- CSM series light curtain
Product overview
- Product type: Standard measurement through-beam light curtain
- Detection range: 0.4–20 m
- Detection principle: Through-beam (opposed)
- Output: 4–20 mA analog
- Supply voltage: DC 24 V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Synchronization: Wired synchronization
- Beam pitch: 60 mm
- Number of beams: 46
- Protective height: 2700 mm
- Included accessories: Manual, certificate, mounting brackets, mounting screws
Mechanical / electrical parameters
- Output type: 4–20 mA
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: Relay (intermediate) type
- Signal type: Analog
- Mounting: Top/bottom installation
Recommended applications
- Electronics assembly (3C industry)
- Automated parking systems
- Logistics and warehousing
Features / technical highlights
- Standard measurement through-beam design
- Detection range 0.4–20 m
- 46 beams with 60 mm pitch
- Protective height 2700 mm
- 4–20 mA analog output, DC 24 V supply
- IP65 protection, relay connection, wired synchronization
- Includes manual, certificate, mounting brackets and screws
