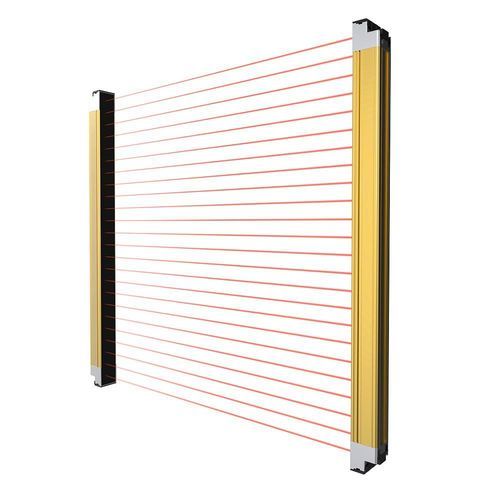

Type 4 safety light curtain CSS32-T0748DP1-RSmultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 4 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Min.: 0.1 m
(0'03" )Max.: 7 m
(22'11" )
Description
Product overview
Technical specifications
Mechanical/electrical parameters
Operating environment
- Product type: safety through-beam light curtain
- Detection distance: 0.1–7 m
- Detection principle: through-beam
- Output: PNP NO
- Supply voltage: DC 24 V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Special feature: sunlight resistant
- Synchronization: RS485
- Beam pitch: 32 mm
- Number of beams: 48
- Protective height: 1528 mm
- Accessories: manual, certificate, mounting brackets, mounting screws
- Materials: housing: aluminium alloy; filter: PMMA; end caps: PC; plugs: SUS304; cable: PVC
Mechanical/electrical parameters
- Output: PNP NO
- Supply voltage: DC 24 V
- Protection rating: IP65
- Connection type: relay (intermediate) type
- Signal type: discrete (switch output)
- Operating mode: Light ON / Dark ON
- Mounting: side mounting
- Indicator: lit when reset, blinking during test
- Protection circuits: output short-circuit protection, output reverse-polarity protection, power reverse-polarity protection
- Residual voltage: <2 V (excluding cable extension effects)
- Permissible capacitive load: 2.2 μF
- Leakage current: <1 mA
- Load current: <300 mA
- Power consumption: emitter <4 W, receiver <5 W
- Insulation resistance: >20 MΩ (measured with DC 500 V megger)
- Shock resistance: 100 m/s², 1000 cycles per X, Y, Z axis
- Dielectric strength: AC 1000 V 50/60 Hz 1 min (between live parts and housing)
- Vibration resistance: 10–55 Hz, amplitude 0.7 mm, 20 cycles per X, Y, Z axis
- External input: external input to stop emitter output
Operating environment
- Operating/storage humidity: 35–95% RH (no condensation)
- Illuminance on receiver surface: <10000 lx
