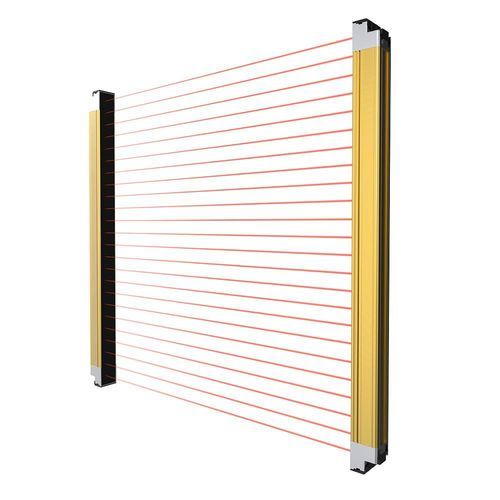

Safety light curtain CSS16-T0396DP1

multibeamthrough-beamvibration-resistant

1. **Naming Rule**
Safety light curtain with fixed 16mm optical axis pitch.
Distance option: T03 (0.1~3m), T07 (0.1~7m). Suffix P(1) = basic transmitter-only type, no interlock / reset function.
‑ Example: CSS16-T03048D, CSS16-T07096D, CSS16-T03024D-P(1)
2. **Available Part Numbers**
All CSS16-T03 / CSS16-T07 models, including P(1) basic transmitter versions.
3. **Detection Principle**
Infrared through-beam safety light curtain, fixed 16mm pitch for palm & hand intrusion detection. Detects ≥Φ10mm opaque object. Standard models adopt dual detection circuit & RS485 synchronous communication.
4. **Sensing Range**
T03:0.1~3m; T07:0.1~7m. Infrared 850nm light source.
Protected height:267~1547mm, step 128mm, optical axes:24~96.
5. **Main Model Versions**
Standard version: Dual OSSD safety outputs (NPN/PNP).
P(1) version: Transmitter only, no interlock & reset function.
Power supply: DC24V (ripple(P-P) ≤10%).
6. **Key Features**
‑ Fixed 16mm optical axis pitch, balanced performance for hand/palm guarding.
‑ Connection: M16 intermediate connector or molded cable.
‑ Housing: Aluminum alloy; Filter: PMMA; Protection grade: IP65.
‑ Built-in protection: Output short-circuit, reverse power connection protection.
‑ Full LED diagnostic indicators on emitter & receiver.
‑ Standard models support RS485 sync, interlock, blanking, max 4 sets cascaded. P(1) basic type excludes interlock & reset.
7. **Operation Mode**
Safety output: Light‑ON (light received ON) / Beam‑OFF (beam blocked OFF).
8. **Output Options**
Standard: Dual OSSD safety outputs + 2 auxiliary non-safety outputs.
P(1): Transmitter only, no safety output.

> Accessories: instruction manual, certificate of compliance, mounting brackets, mounting screws, 4m extension cable.# CSS16 Series (16mm Optical Axis Pitch, Palm / Hand Protection, including P(1) variant)
