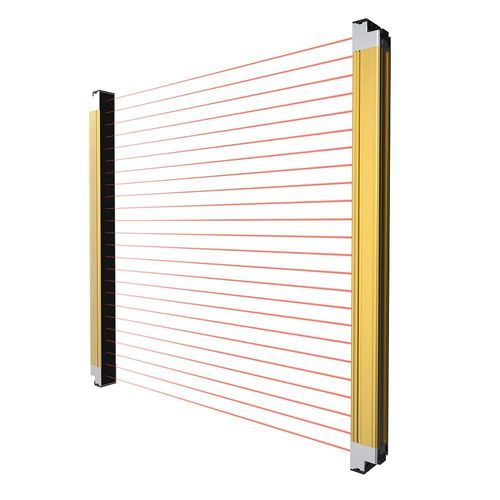

Type 4 safety light curtain CSS32-T0736DP1-RSmultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- type 4 safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Max.: 7 m
(22'11" )Min.: 0.1 m
(0'03" )
Description
Overview
Technical specifications
Mechanical / Electrical parameters
Operating environment
Accessories
Materials
Features / Specification summary
- Model: CSS32-T0736DP1
- Series: CSS series light curtains
- Product type: Safety light curtain (through-beam)
- Detection principle: Through-beam
- Detection range: 0.1–7 m
- Protective height: 1144 mm
- Beam pitch: 32 mm
- Number of beams: 36
- Output: PNP, NO (discrete)
- Supply voltage: DC 24V
- Protection rating: IP65
Technical specifications
- Cable length: 0.5 m
- Special feature: Sunlight resistant
- Synchronization: RS485 sync
- Protective height: 1144 mm
- Standard accessories: Manual, inspection certificate, mounting brackets, mounting screws
- Materials: Housing — aluminum alloy; Filter — PMMA; End cap — PC; Plugs — SUS304; Cable — PVC
Mechanical / Electrical parameters
- Output type: PNP NO
- Supply: DC 24V
- Ingress protection: IP65
- Connection type: Relay-type
- Signal type: Discrete
- Operation mode: Light ON / Dark ON
- Mounting: Side mounting
- Indicator: Steady on after reset; flashing during test
- Protection circuits: Output short-circuit protection, output reverse-connection protection, power reverse-connection protection
- Residual voltage: <2 V (excluding cable extension effects)
- Allowable capacitive load: 2.2 µF
- Leakage current: <1 mA
- Load current: <300 mA
- Power consumption: Emitter <4 W; Receiver <5 W
- Insulation resistance: >20 MΩ (DC 500 V megger)
- Shock resistance: 100 m/s², 1000 times in X, Y, Z
- Vibration resistance: 10–55 Hz, amplitude 0.7 mm, 20 times in X, Y, Z
- Dielectric strength: AC 1000 V, 50/60 Hz, 1 min (charged parts vs. housing)
- External input: Stop emitter light function via external input
Operating environment
- Relative humidity: 35–95% RH (no condensation) for operation/storage
- Illuminance: Receiver surface < 10000 lx
Accessories
- Manual, inspection certificate, mounting brackets, mounting screws
Materials
- Housing: Aluminum alloy
- Filter: PMMA
- End cap: PC
- Plug: SUS304
- Cable: PVC
Features / Specification summary
- Model: CSS32-T0736DP1
- Series: CSS series light curtains
- Detection range: 0.1–7 m
- Beams / pitch: 36 / 32 mm
- Protective height: 1144 mm
- Output: PNP NO (discrete)
- Supply: DC 24V
- Protection: IP65
- Synchronization: RS485
- Mounting: Side mounting
- Typical accessories: Manual, inspection certificate, mounting brackets, screws
