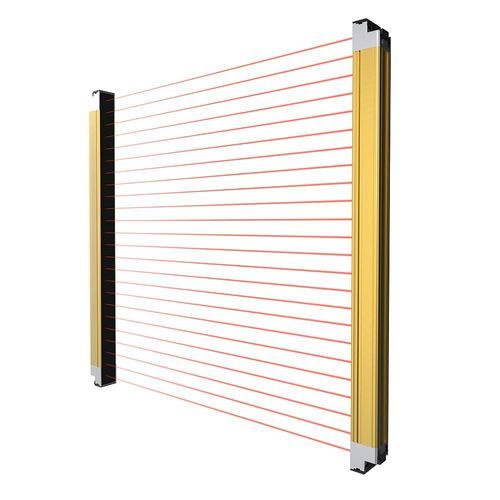

Safety light curtain CSS32-T0740DP1-RSmultibeamthrough-beamIP65
Add to favorites
Compare this product
Characteristics
- Function
- safety
- Type of beam
- multibeam
- Configuration
- through-beam
- Protection level
- IP65
- Operating range
Max.: 7 m
(22'11" )Min.: 0.1 m
(0'03" )
Description
Product overview
Technical specifications
Mechanical / electrical parameters
Operating environment
Features / summary
- Product type: Safety light curtain
- Detection range: 0.1–7 m
- Detection principle: Through-beam
- Output: PNP NO
- Supply voltage: DC 24V
- Ingress protection: IP65
Technical specifications
- Cable length: 0.5 m
- Special feature: Sunlight resistant
- Synchronization: RS485
- Beam pitch: 32 mm
- Number of beams: 40
- Protective height: 1272 mm
- Accessories: Manual, certificate, mounting brackets, mounting screws
- Materials: Housing: aluminium alloy; Filter: PMMA; End cap: PC; Plugs: SUS304; Cable: PVC
Mechanical / electrical parameters
- Connection type: Repeater-type
- Signal type: Discrete switching
- Operating modes: Light ON / Dark ON
- Mounting: Side mounting
- Indicator: Steady on at reset, flashing during test
- Protection circuits: Output short-circuit protection, output reverse-polarity protection, power reverse-polarity protection
- Residual voltage: <2 V (excluding cable extension effect)
- Allowed capacitive load: 2.2 µF
- Leakage current: <1 mA
- Load current: <300 mA
- Power consumption: Emitter <4 W, Receiver <5 W
- Insulation resistance: ≥20 MΩ (measured at DC 500 V)
- Shock resistance: 100 m/s², X/Y/Z 1000 cycles
- Dielectric strength: AC 1000 V 50/60 Hz 1 min between live parts and housing
- Vibration: 10–55 Hz, amplitude 0.7 mm, X/Y/Z 20 cycles
- External input: External input to stop emitter emission
Operating environment
- Relative humidity (operating/storage): 35–95% RH (no condensation)
- Illumination on receiver: <10000 lx
Features / summary
- Model: CSS32-T0740DP1
- Series: CSS series light curtains
- Protective height: 1272 mm
- Beam pitch / count: 32 mm / 40 beams
- Synchronization: RS485
- Mounting: Side mounting
- Ingress protection: IP65
- Power: DC 24V
- Output: PNP NO, discrete switching signal
