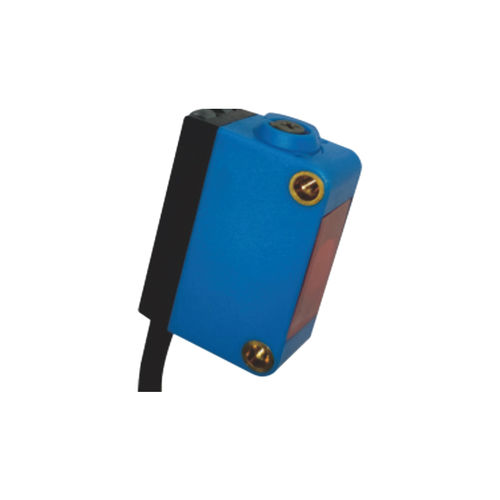

Through-beam sensor photoelectric sensor CPH-TE10MN3

rectangularsquarelaser

1. **Naming Rule**
Detection principle: Through‑beam; Power supply: DC12‑24V.
Light source: Red semiconductor laser Class 2 (655 nm).
Connection: Cable‑integrated / M12 connector‑A type.
‑ NPN 10 m: CPH‑TE10MN3
‑ PNP 10 m: CPH‑TE10MP3
2. **Available Part Numbers**
CPH‑TE10MN3(NPN,10m), CPH‑TE10MP3(PNP,10m);
M12‑A connector versions: CPH‑TE10MN3‑A, CPH‑TE10MP3‑A.
3. **Detection Principle**
Through‑beam type. Transmitter emits laser beam to receiver. Object detection occurs when the target blocks the laser light path between transmitter and receiver. Standard detect object: opaque object ≥Φ10 mm.
4. **Sensing Range**
Sensing distance: 10 m.
Spot size: 1*2 mm; Beam pointing angle: 2°.
Indicator: Red‑action indicator; Green‑stability indicator; Green power indicator only on transmitter.
5. **Main Model Versions**
NPN or PNP transistor open‑collector output; cable‑integrated or M12‑A connector optional.
6. **Key Features**
‑ Small square housing, supply voltage DC12‑24V (ripple(p‑p) ≤10%, DC10‑30V permissible)
‑ Red semiconductor laser Class 2 (655 nm), tiny‑spot for precise positioning
‑ Response time: ≤0.5 ms
‑ Max load current: 100 mA; residual voltage ≤3V (cable 2 m)
‑ Operating temperature:‑25~+55 ℃; Storage temperature:‑25~+65 ℃ (no icing, no condensation)
‑ Protection class: IP65
‑ Built‑in reverse‑connection, surge and short‑circuit protection.
7. **Operation Mode**
Light‑ON / Dark‑ON selectable via potentiometer.
8. **Output Options**
NPN / PNP transistor open‑collector output, max load current 100 mA.1. **Naming Rule**
